Macomb Group 10031416 1-1/4 Wrot Ftg X C 90 Ell

Product Description

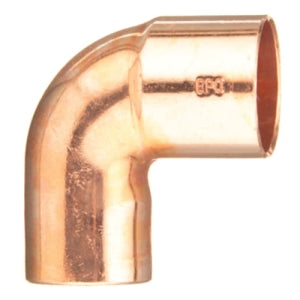

The MACOMB GROUP 10031416 is an industrial/residential solder joint close ruff 90 DEG street elbow. Constructed from copper, this fitting features a 1-1/4 IN tube size and a fitting x copper connection type. It conforms to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Street Elbow
• Maximum pressure of 435 PSI

Product Highlights

This copper street elbow is designed for industrial and residential applications requiring a solder joint and operates between -20 to 100 DEG F.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031416

Technical Specifications

• Tube Size: 1-1/4 IN
• Connection Type: Fitting X Copper
• Material: Copper
• Outside Diameter: 1-3/8 IN
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
