Macomb Group 10031412 Wrot FTG X C 90 Ell

Product Description

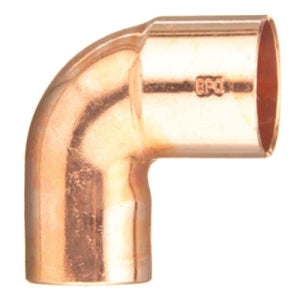

The MACOMB GROUP 10031412 is an industrial/residential solder joint close ruff 90 DEG street elbow. It is made of copper with a fitting X copper connection type. This elbow has a maximum pressure of 490 PSI and a temperature rating of -20 to 100 DEG F. Compliant with industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61 Certified.

• Tube Size: 1 IN
• Maximum Pressure: 490 PSI
• Material: Copper

Product Highlights

Copper 90 degree street elbow for industrial and residential applications. Features a solder joint and fitting x copper connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031412

Technical Specifications

• Tube Size: 1 IN
• Connection Type: Fitting X Copper
• Material: Copper
• Outside Diameter: 1-1/8 IN
• Maximum Pressure: 490 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Close Ruff 90 DEG Street Elbow
• Type: Industrial/Residential
