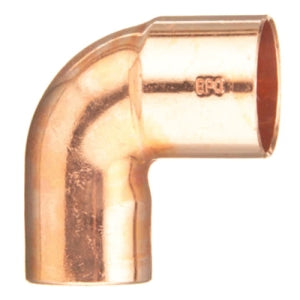

Macomb Group 10031408 3/4 Wrot Ftg X C 90 Ell

Product Description

The MACOMB GROUP 10031408 is an industrial/residential solder joint close ruff 90 DEG street elbow. Constructed from copper, it features a fitting X copper connection type and a 3/4 IN tube size. It is designed to withstand a maximum pressure of 580 PSI and temperatures ranging from -20 to 100 DEG F.

• Tube Size: 3/4 IN
• Maximum Pressure: 580 PSI
• Material: Copper

Product Highlights

This elbow fitting is suitable for industrial/residential applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031408

Technical Specifications

• Tube Size: 3/4 IN
• Connection Type: Fitting X Copper
• Material: Copper
• Outside Diameter: 7/8 IN
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Close Ruff 90 DEG Street Elbow
• Type: Industrial/Residential
