Macomb Group 10031404 5/8 Wrot Ftg X C 90 Ell

Product Description

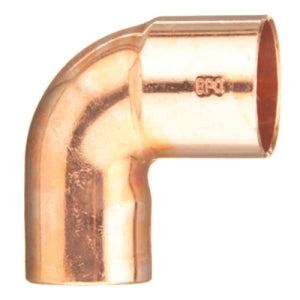

The MACOMB GROUP 10031404 is an industrial/residential solder joint close ruff 90 DEG street elbow. Constructed from copper, this elbow features a fitting X copper connection type and a 5/8 IN tube size. It is designed to withstand a maximum pressure of 630 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Street Elbow
• Fitting X Copper Connection Type

Product Highlights

Copper construction ensures durability. Suitable for industrial and residential applications. Adheres to MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031404

Technical Specifications

• Series/Model: Model 107C-2
• Tube Size: 5/8 IN
• Connection Type: Fitting X Copper
• Material: Copper
• Outside Diameter: 3/4 IN
• Maximum Pressure: 630 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: No
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Close Ruff 90 DEG Street Elbow
• Type: Industrial/Residential
