Macomb Group 10031392 1/4 Wrot Ftg X C 90 Ell

Product Description

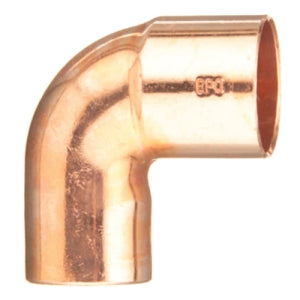

The MACOMB GROUP 10031392 is an industrial/residential solder joint close ruff 90 DEG street elbow. Constructed from copper, this elbow fitting has a tube size of 1/4 IN and an outside diameter of 3/8 IN. It is designed to withstand a maximum pressure of 910 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential application
• Solder Joint connection
• 90 DEG Street Elbow

Product Highlights

This copper elbow fitting ensures reliable performance in various industrial and residential applications, meeting industry standards such as MSS-SP-104 and ASME/ANSI B16.22.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031392

Technical Specifications

• Series/Model: Model 107C-2
• Tube Size: 1/4 IN
• Connection Type: Fitting X Copper
• Material: Copper
• Outside Diameter: 3/8 IN
• Maximum Pressure: 910 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• TecTite: No
• DWV: No
• Cast: No
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Close Ruff 90 DEG Street Elbow
• Type: Industrial/Residential
