Macomb Group 10031338 3 Wrot C X C 90 Ell

Product Description

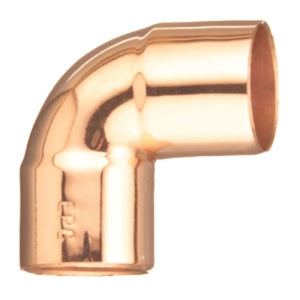

The MACOMB GROUP 10031338 is an industrial/residential solder joint close ruff 90 DEG elbow. Constructed from copper, this elbow fitting is a Wrot type and suitable for copper connection types. It conforms to industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61. It withstands a maximum pressure of 315 PSI and temperatures from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• Tube Size: 3 IN

Product Highlights

Copper elbow fitting for industrial/residential solder joints, featuring a close ruff 90-degree design and adherence to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031338

Technical Specifications

• Tube Size: 3 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 3-1/8 IN
• Maximum Pressure: 315 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Close Ruff 90 DEG Elbow
• Type: Industrial/Residential
