Macomb Group 10031330 2-1/2 Wrot C X C 90 Ell

Product Description

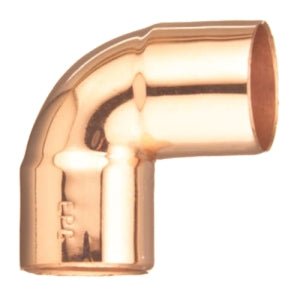

The MACOMB GROUP 10031330 is an industrial/residential solder joint close ruff 90 DEG elbow. Constructed from copper, this Wrot fitting has a tube size of 2-1/2 IN and an outside diameter of 2-5/8 IN. It is designed to withstand a maximum pressure of 335 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• Certified to MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61

Product Highlights

Copper 90 degree elbow suitable for industrial and residential applications. Features a solder joint connection and is certified to meet industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031330

Technical Specifications

• Tube Size: 2-1/2 IN
• Connection Type: C X C (Solder)
• Material: Copper
• Outside Diameter: 2-5/8 IN
• Maximum Pressure: 335 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
