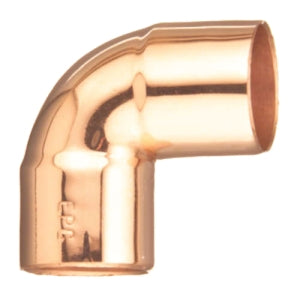

Macomb Group 10031314 1-1/2 Wrot C X C 90 Ell

Product Description

The MACOMB GROUP 10031314 is an industrial/residential solder joint close ruff 90 DEG elbow. It is made of copper with a tube size of 1-1/2 IN and an outside diameter of 1-5/8 IN. This elbow is designed for use in applications with a maximum pressure of 405 PSI and temperature ratings from -20 To 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• Complies with Industry Standards MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified

Product Highlights

Copper elbow with 1-1/2 IN tube size for industrial and residential solder joint applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031314

Technical Specifications

• Tube Size: 1-1/2 IN
• Connection Type: C x C (Copper x Copper)
• Material: Copper
• Outside Diameter: 1-5/8 IN
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Close Ruff 90 DEG Elbow
• Type: Industrial/Residential
