Macomb Group 10031288 3/4 Wrot C X C 90 Ell

Product Description

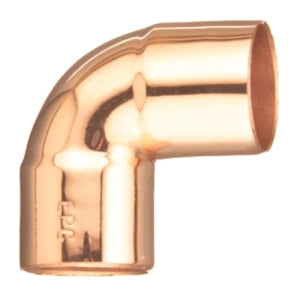

The MACOMB GROUP 10031288 is an industrial/residential solder joint close ruff 90 DEG elbow. Constructed from copper, this elbow features a 3/4 IN tube size and 7/8 IN outside diameter. It is designed to withstand a maximum pressure of 580 PSI and temperatures ranging from -20 to 100 DEG F.

• Industrial/Residential Solder Joint
• Close Ruff 90 DEG Elbow
• Compliant with industry standards MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified

Product Highlights

This copper elbow fitting is ideal for creating 90-degree connections in plumbing and industrial applications. Its robust design ensures reliable performance within specified pressure and temperature ranges.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10031288

Technical Specifications

• Tube Size: 3/4 IN
• Connection Type: C x C (Copper x Copper)
• Material: Copper
• Outside Diameter: 7/8 IN
• Maximum Pressure: 580 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Close Ruff 90 DEG Elbow
• Type: Industrial/Residential
