Product Description

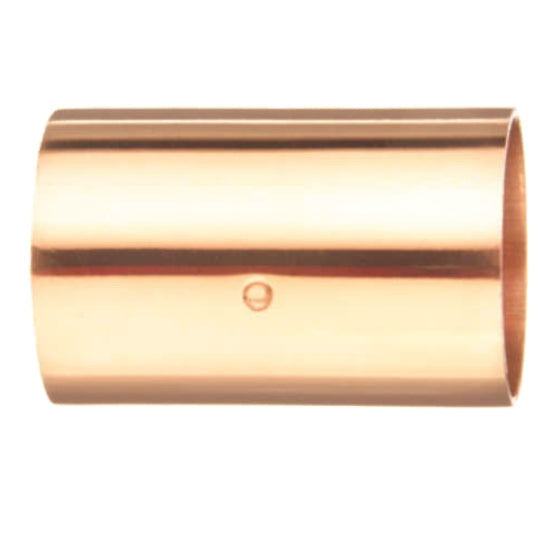

The MACOMB GROUP 10030928 is an industrial/residential solder joint coupling with stop. Constructed from copper, this coupling is designed for a 6 IN tube size. It has a maximum pressure rating of 250 PSI and an outside diameter of 6-1/8 IN. Suitable for use in a range of applications, this coupling meets industry standards MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61.

• Industrial/Residential Solder Joint Coupling
• With Stop
• Copper construction

Product Highlights

6 IN copper coupling with stop for industrial and residential solder joint applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030928

Technical Specifications

• Tube Size: 6 IN
• Connection Type: Copper
• Material: Copper
• Outside Diameter: 6.125 IN
• Maximum Pressure: 250 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Coupling With Stop
• Type: Industrial/Residential
