Macomb Group 10030436 1/2 wrot ftg x mpt adapter

Product Description

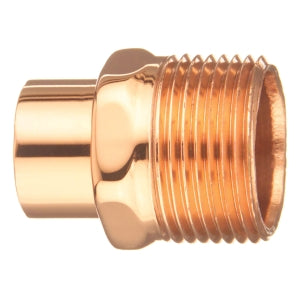

The MACOMB GROUP 10030436 is an industrial/residential solder joint street male adapter, Model 104-2, designed for use with 1/2 IN tubes. Constructed from copper, it features a fitting X MNPT connection type and can withstand a maximum pressure of 720 PSI. It adheres to industry standards MSS-SP-104, ASME/ANSI B16.22, and is NSF/ANSI Standard 61 Certified.

• Industrial/Residential Solder Joint Street Male Adapter
• Tube Size: 1/2 IN
• Maximum Pressure: 720 PSI

Product Highlights

Copper adapter with 1/2 IN tube size and 720 PSI maximum pressure.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030436

Technical Specifications

• Series/Model: Model 104-2
• Tube Size: 1/2 IN
• Nominal Size: 1/2 IN
• Connection Type: Fitting X MNPT
• Material: Copper
• Outside Diameter: 5/8 X 1/2 IN
• Maximum Pressure: 720 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Street Male Adapter
• Type: Industrial/Residential
