Macomb Group 10030368 1-1/2 Wrot C X Mpt Adapter

Product Description

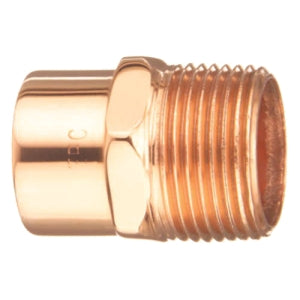

The MACOMB GROUP 10030368 is an industrial/residential solder joint male adapter. This Model 104 adapter features a copper X MNPT connection type and is made of copper. It has a tube size and nominal size of 1-1/2 IN and an outside diameter of 1-5/8 X 1-1/2 IN. It is suitable for use in plumbing and piping systems.

• Industrial/Residential Solder Joint Male Adapter
• Tube Size: 1-1/2 IN
• Maximum Pressure: 405 PSI

Product Highlights

The MACOMB GROUP 10030368 adapter is made of copper and features a copper X MNPT connection. It conforms to industry standards MSS-SP-104 and ASME/ANSI B16.22.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030368

Technical Specifications

• Series/Model: Model 104
• Tube Size: 1-1/2 IN
• Nominal Size: 1-1/2 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Outside Diameter: 1-5/8 X 1-1/2 IN
• Maximum Pressure: 405 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• Item Name: Solder Joint Male Adapter
• Type: Industrial/Residential
