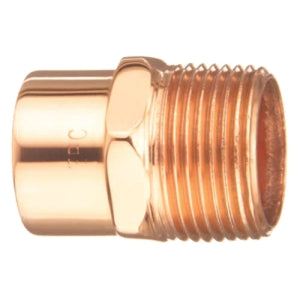

Macomb Group 10030354 1-1/4 Wrot C X Mpt Adapter

Product Description

The MACOMB GROUP 10030354 is an industrial/residential solder joint male adapter. This Model 104 adapter features a copper X MNPT connection type and is constructed from copper. It is certified to MSS-SP-104, ASME/ANSI B16.22, and NSF/ANSI Standard 61. It is designed for tube sizes and nominal sizes of 1-1/4 IN.

• Industrial/Residential Solder Joint Male Adapter
• Tube Size: 1-1/4 IN
• Maximum Pressure: 435 PSI

Product Highlights

The MACOMB GROUP 10030354 adapter is ideal for industrial and residential applications requiring a durable and certified solder joint connection.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 10030354

Technical Specifications

• Series/Model: Model 104
• Tube Size: 1-1/4 IN
• Nominal Size: 1-1/4 IN
• Connection Type: Copper X MNPT
• Material: Copper
• Outside Diameter: 1-3/8 X 1-1/4 IN
• Maximum Pressure: 435 PSI
• Temperature Rating: -20 To 100 DEG F
• Industry Standards: MSS-SP-104, ASME/ANSI B16.22, NSF/ANSI Standard 61 Certified
• Wrot: Yes
• Lead Free: No
• O2 Cleaned: No
• Item Name: Solder Joint Male Adapter
• Type: Industrial/Residential
