Macomb Group 100210 10 IPS HDPE FM200 Back-Up Ring

Product Description

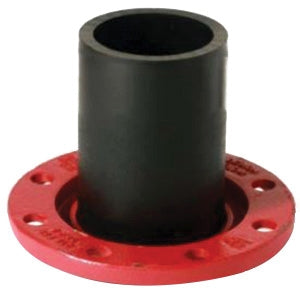

The MACOMB GROUP 100210 is a 10 IPS HDPE FM200 Back-Up Ring. This red epoxy-coated ductile iron molded backup ring is designed for HDPE pipe applications. It adheres to ANSI B16.5 standards and is FM 250 Approved, ensuring quality and reliability. It has a pressure class of 150 and can withstand a maximum pressure of 335 PSI.

• Features a fusion bonded epoxy-coating for enhanced durability.
• Designed for use with HDPE pipe.
• Manufactured from ductile iron conforming to ASTM A536.

Product Highlights

Ductile iron backup ring with red epoxy coating, suitable for HDPE pipe applications and compliant with industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 100210

Technical Specifications

• Item Name: Backup Ring
• Pressure Class: 150
• Nominal Size: 10 IN IPS
• Wall Thickness: SDR 11
• Inside Diameter: 11 IN
• Outside Diameter: 10-3/4 IN
• Thickness: 1.15 IN
• Bolt Circle Diameter: 14-1/4 IN
• Number Of Bolts: 12
• Bolt Hole Diameter: 1 IN
• Material: Ductile Iron
• Material Standard: ASTM A536
• Finish/Color: Red Epoxy-Coated
• Method Of Manufacturer: Molded
• Maximum Pressure: 335 PSI
• Industry Standards: ANSI B16.5 Specified, FM 250 Approved
• Other Physical Dimension: 8-1/2 IN Bolt Length
• Domestic/Import: Domestic
