Macomb Group 100202 3 IPS HDPE FM200 Back-Up Ring

Product Description

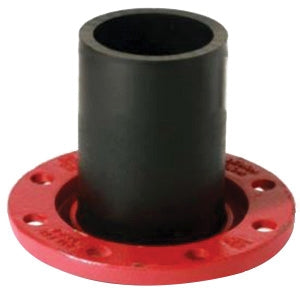

The MACOMB GROUP 100202 is a 3 IPS HDPE FM200 Back-Up Ring. This ductile iron molded backup ring features a fusion bonded epoxy-coating. It is designed for HDPE pipe and adheres to ANSI B16.5 Specified and FM 250 Approved industry standards. The ring has a pressure class of 150 and a maximum pressure of 335 PSI.

• For HDPE pipe
• Fusion bonded epoxy-coating
• Red Epoxy-Coated Ductile Iron Molded Backup Ring

Product Highlights

The MACOMB GROUP 100202 is a 3 IPS HDPE FM200 Back-Up Ring with fusion bonded epoxy-coating, designed for HDPE pipe.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 100202

Technical Specifications

• Item Name: Backup Ring
• Pressure Class: 150
• Nominal Size: 3 IN IPS
• Wall Thickness: SDR 11
• Inside Diameter: 3-3/4 IN
• Outside Diameter: 3-1/2 IN
• Thickness: 0.94 IN
• Bolt Circle Diameter: 6 IN
• Number Of Bolts: 4
• Bolt Hole Diameter: 3/4 IN
• Material: Ductile Iron
• Material Standard: ASTM A536
• Finish/Color: Red Epoxy-Coated
• Method Of Manufacturer: Molded
• Maximum Pressure: 335 PSI
• Industry Standards: ANSI B16.5 Specified, FM 250 Approved
• Other Physical Dimension: 4-1/2 IN Bolt Length
• Domestic/Import: Domestic
