Macomb Group 0318911161 3/4 x 1/2 Std Blk Mi Flush Bushing

Product Description

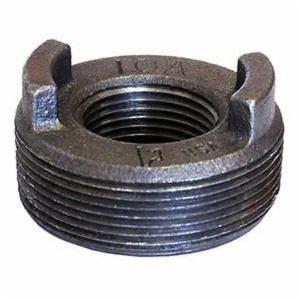

The MACOMB GROUP 0318911161 is a 3/4 X 1/2 Std Blk Mi Flush Bushing. This Class 150 standard black malleable iron flush bushing measures 3/4 X 1/2 IN with MNPT X FNPT connection type. It conforms to ASME B16.3 and ASME B1.20.1 standards and is C/US UL Listed, FM Approved, and NSF/ANSI 61 Certified.

• MNPT X FNPT connection type
• Constructed from malleable iron
• Maximum pressure of 300 PSI

Product Highlights

The MACOMB GROUP 0318911161 flush bushing is made from black malleable iron and adheres to industry standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 0318911161

Technical Specifications

• Connection Type: MNPT X FNPT
• Finish/Color: Black
• Industry Standards: ASME B16.3, ASME B1.20.1, C/US UL Listed, FM Approved, NSF/ANSI 61 Certified
• Item Name: Flush Bushing
• Material: Malleable Iron
• Material Standard: ASTM A197
• Nominal Size: 3/4 X 1/2 IN
• Pressure Class: Class 150
• Schedule: STD
• Series/Model: Model 385
• Maximum Pressure: 300 PSI
• Temperature Rating: -20 To 150 DEG F
