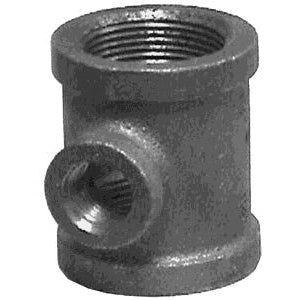

Macomb Group 0310036207 Reducing Tee 3/8 X 3/8 X 1/4 IN

Product Description

The MACOMB GROUP 0310036207 is a reducing tee, Model 1105R, with a Class 150 pressure rating and nominal size of 3/8 X 3/8 X 1/4 IN. Constructed from malleable iron conforming to ASTM A197, it features a black finish and FNPT connection type. It is suitable for applications with a maximum pressure of 300 PSI and temperatures ranging from -20 to 150 DEG F.

• Reducing Tee
• FNPT Connection Type
• Malleable Iron Material

Product Highlights

This reducing tee is made from malleable iron with a black finish and is suitable for various applications.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 0310036207

Technical Specifications

• Series/Model: Model 1105R
• Pressure Class: Class 150
• Nominal Size: 3/8 X 3/8 X 1/4 IN
• Connection Type: FNPT
• Schedule: STD
• Material: Malleable Iron
• Material Standard: ASTM A197
• Finish/Color: Black
• Maximum Pressure: 300 PSI
• Temperature Rating: -20 To 150 DEG F
• Industry Standards: ASME B16.3, ASME B1.20.1, C/US UL Listed, FM Approved, NSF/ANSI 61 Certified
• Other Physical Dimension: 7/8 X 7/8 X 15/16 IN Center To End
• Weight: 0.210 LB
