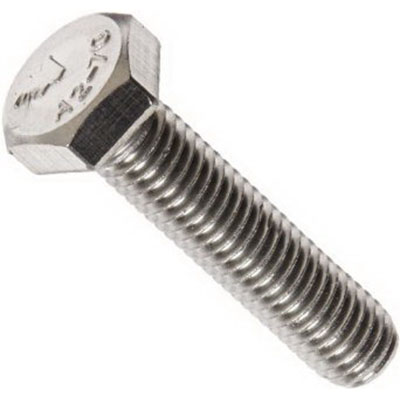

Macomb Group 0253504SHB 1/4 x 3-1/2 304ss Hex Bolt

Product Description

The MACOMB GROUP 0253504SHB is a hex bolt with a 1/4 IN diameter and a thread size of 1/4 IN. It measures 3-1/2 IN in length with a 3/4 IN thread length and is made of 304 stainless steel, adhering to industry standards ASME B18.2.1. The hex head has a width of 0.428 - 0.438 IN across the flat and a head height of 0.15 - 0.163 IN.

• Diameter: 1/4 IN
• Material: 304 Stainless Steel
• Industry Standards: ASME B18.2.1

Product Highlights

The MACOMB GROUP 0253504SHB hex bolt is made from 304 stainless steel and adheres to ASME B18.2.1 standards.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: 0253504SHB

Technical Specifications

• Diameter: 1/4 IN
• Thread Size: 1/4 IN
• Length: 3-1/2 IN
• Thread Length: 3/4 IN
• Material: 304 Stainless Steel
• Industry Standards: ASME B18.2.1
• Head Type: Hex Head
• Head Width Across Flat: 0.428 - 0.438 IN
• Head Height: 0.15 - 0.163 IN
• Body Diameter: 0.245 - 1/4 IN
