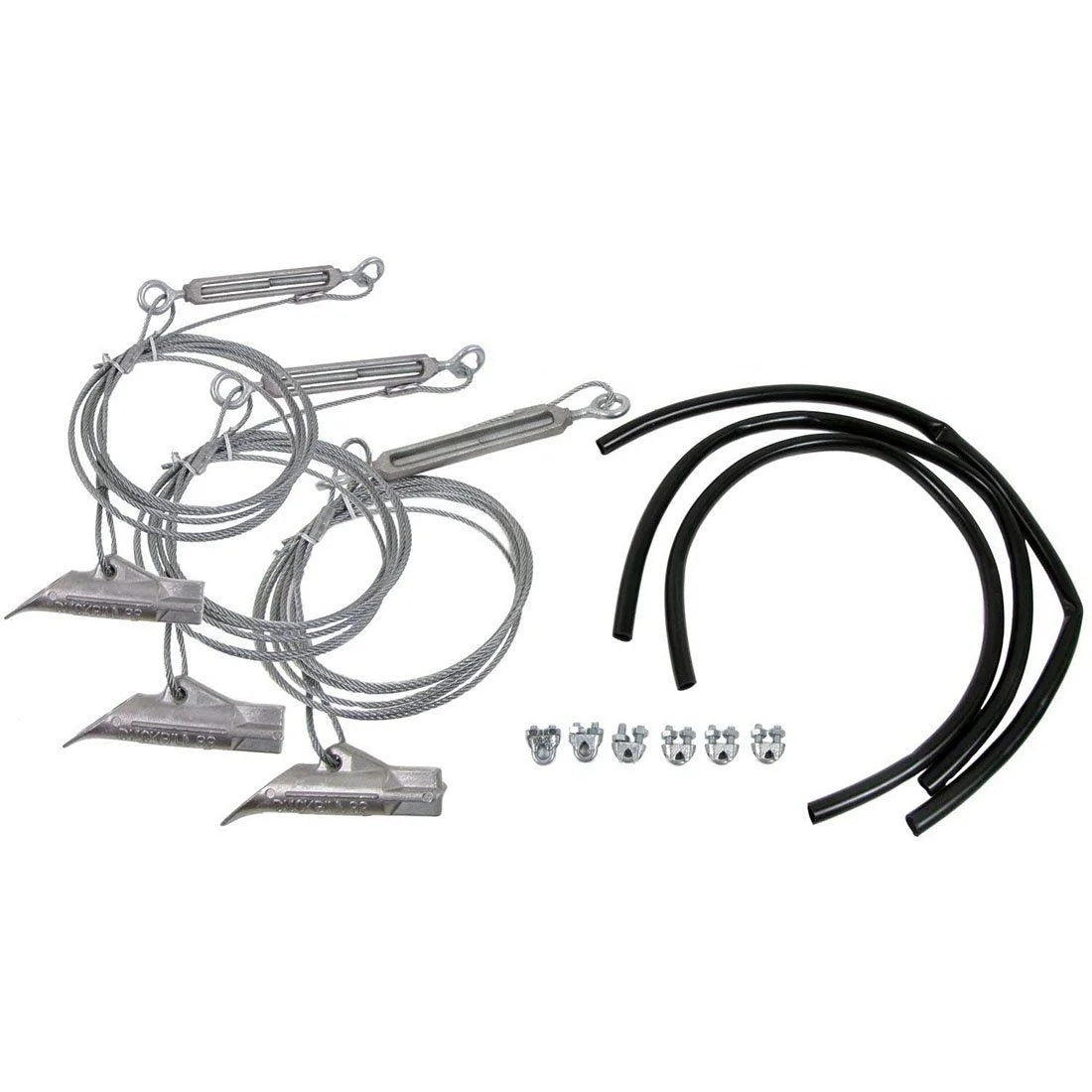

Maclean Power Systems F830138 Tree Anchor Kit 1100 Lb

Product Description

The MACLEAN POWER SYSTEMS F830138 is a Duckbill 68-DTS tree anchor kit rated for 1,100 pounds of holding capacity. It is designed to stabilize newly planted or at-risk trees by anchoring the root ball or trunk to the surrounding soil. The kit fits trees with trunk diameters from 3 to 6 inches and uses a driven earth anchor with a cable assembly to resist wind load and lateral movement. Arborists, landscapers, and utility line crews install this type of system as part of routine tree establishment and hazard-mitigation work.

This anchor kit is suited for residential and commercial landscape installations where post-planting tree support is required. Typical applications include street tree programs, municipal right-of-way plantings, utility corridor vegetation management, and new construction site landscaping. The 1,100-pound working load rating makes it appropriate for medium-caliper trees in moderate to high wind-exposure sites. The duckbill earth anchor design locks mechanically in the soil once driven and rotated, eliminating the need for excavation around the root zone.

Key Features

• 1,100-pound rated holding capacity for reliable stabilization of medium-caliper trees
• Fits trunk or root ball diameters from 3 to 6 inches
• Duckbill 68-DTS earth anchor design locks in place without excavation
• Driven installation method minimizes soil disturbance around root zone
• Complete kit format includes anchor and associated cable or strap hardware for a single anchor point

Compatibility

Designed for use with trees measuring 3 to 6 inches in trunk diameter. Suitable as an OEM-style replacement or direct substitute for Duckbill 68-DTS series tree anchor assemblies in standard landscape and arboricultural anchoring applications.

Installation Notes

Installation is performed by licensed arborists, landscape contractors, or utility vegetation crews using a standard drive steel and hammer or pneumatic driver to set the anchor at the appropriate depth and angle. Before installation, verify that no buried utilities, irrigation lines, or conduit are present in the drive path. Once driven to depth, rotate the anchor 90 degrees to engage the locking fluke in the soil before applying tension to the cable assembly. Follow all applicable local codes and manufacturer load guidelines when determining anchor spacing and cable tension for the specific tree and site conditions.

Technical Specifications

• Rated Holding Capacity: 1,100 lb
• Compatible Trunk Diameter Range: 3 to 6 inches
• Anchor Series: Duckbill 68-DTS
• Order Increment: 1

Standard Information

• Brand: MACLEAN POWER SYSTEMS
• Manufacturer Part Number: F830138
