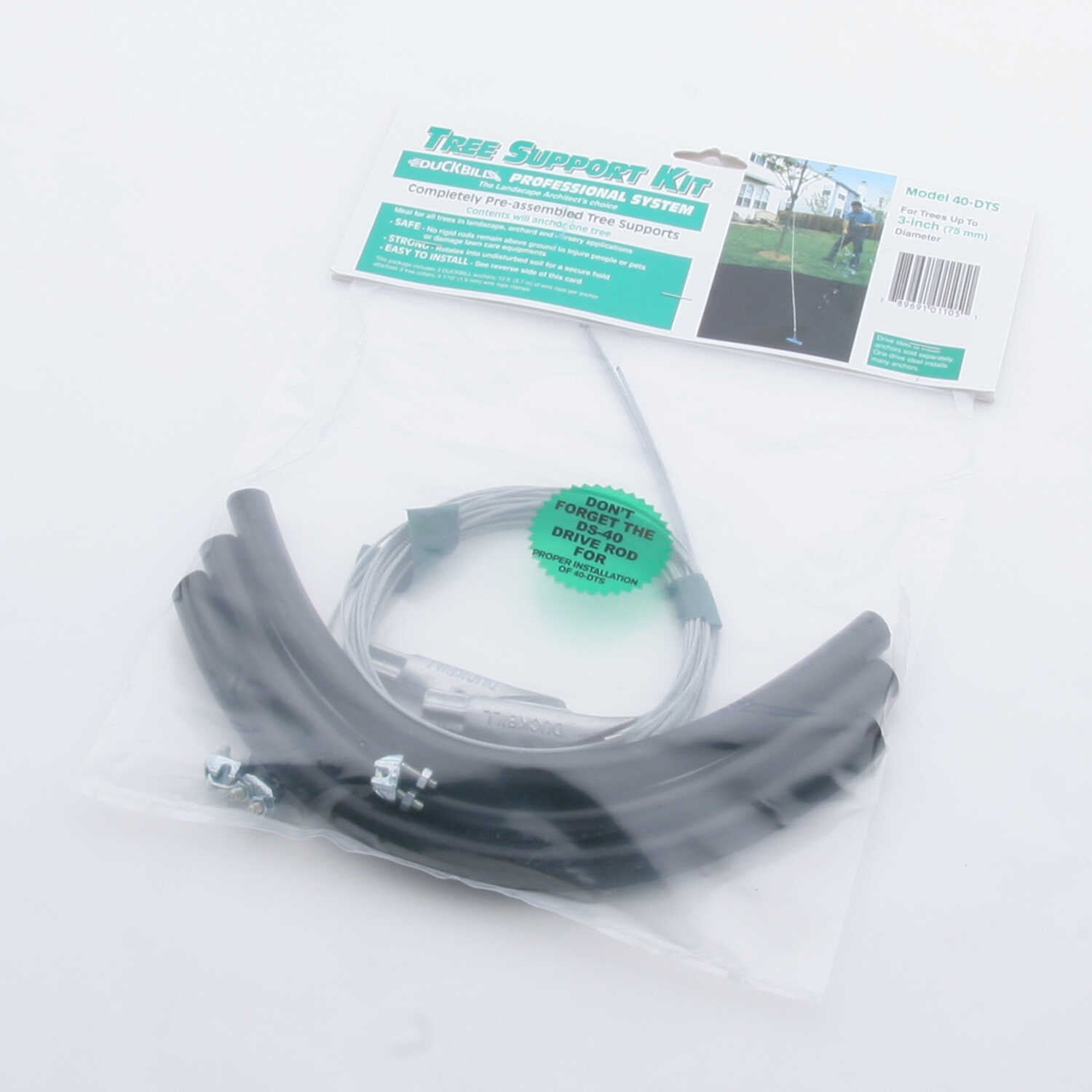

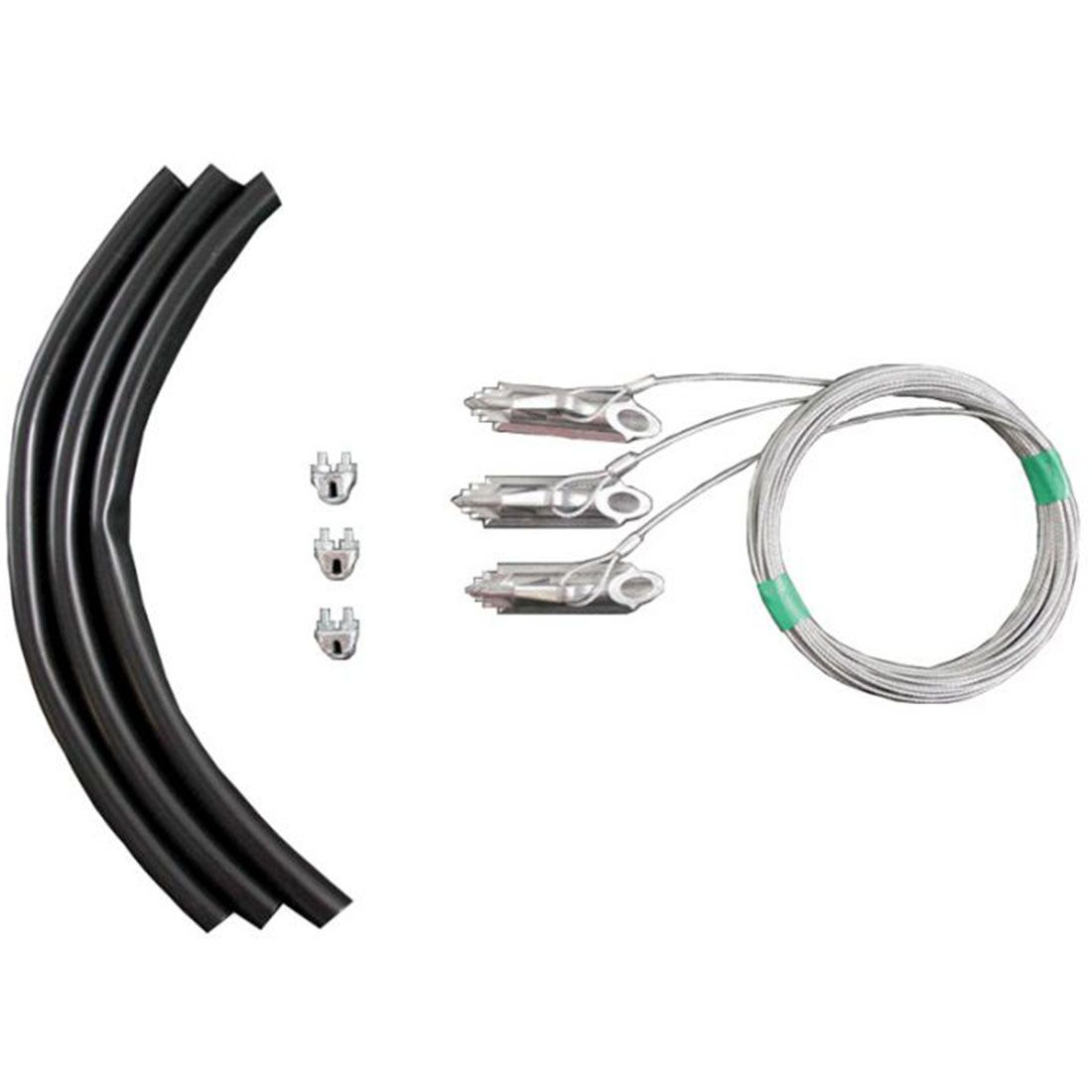

Maclean Power Systems F830113 Tree Anchor Kit 300 Lb

Product Description

The MACLEAN POWER SYSTEMS F830113 is a Duckbill 40-DTS Tree Anchor Kit rated for 300 pounds of holding capacity, designed to anchor trees and similar vertical plantings in place during establishment. The kit works with trunk diameters ranging from 0 to 3 inches and uses Duckbill earth anchor technology to set a secure hold in the surrounding soil. Landscape contractors, arborists, and site installers use this kit when staking newly planted trees in residential, commercial, or municipal applications.

This anchor kit is suited for light-to-medium tree staking work where non-invasive, below-grade anchoring is preferred over traditional above-grade guying systems. The Duckbill anchor mechanism is driven into the soil and locks in place when tension is applied, distributing load without damaging root systems. It is a practical choice for new landscape installations, street tree programs, and post-storm replanting projects where speed of installation and minimal surface hardware are priorities.

Key Features

• 300 lb rated holding capacity for reliable tree stabilization
• Compatible with tree trunk diameters from 0 to 3 inches
• Duckbill earth anchor design locks in soil when tension is applied
• Below-grade anchoring minimizes above-ground hardware and trip hazards
• Sold in single-unit order increments for flexible project quantities

Compatibility

Designed as an OEM-style replacement and standard-use anchor kit for trees with trunk diameters from 0 to 3 inches in typical landscape soil conditions.

Installation Notes

Installation is performed by landscape contractors or arborists using a drive rod and hammer to set the anchor below grade. Ensure soil is free of large obstructions before driving the anchor to achieve proper set depth. Apply tension to the anchor line only after the Duckbill has been fully driven and rotated to its locked position. Follow all local landscape and municipal codes for tree staking requirements on public right-of-way installations.

Technical Specifications

• Model: Duckbill 40-DTS
• Holding Capacity: 300 lb
• Compatible Trunk Diameter: 0 to 3 inches
• Order Increment: 1

Standard Information

• Brand: MACLEAN POWER SYSTEMS
• Manufacturer Part Number: F830113
