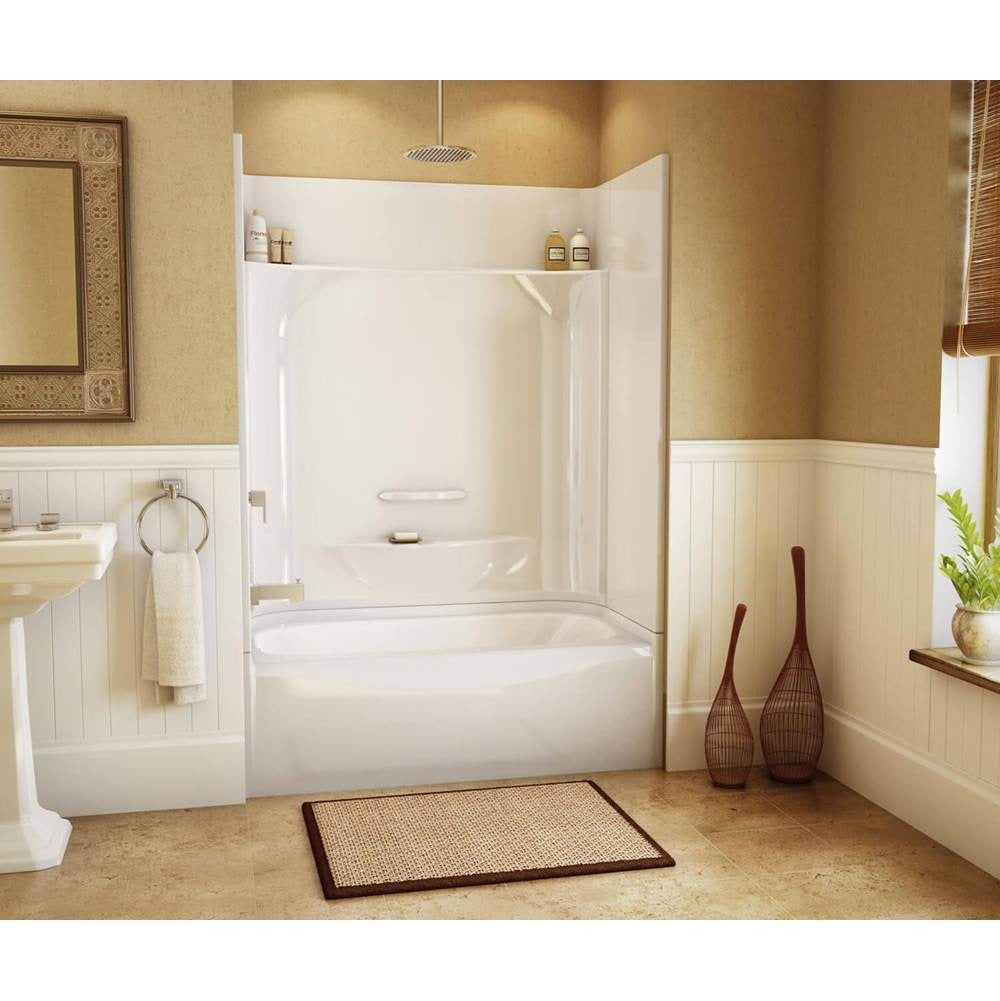

Maax 142000-000-002-095 Alcove Tub Shower Suite Right-hand Drain

Product Description

The MAAX 142000-000-002-095 is a four-piece alcove tub and shower suite designed for residential bathroom installations requiring a combined soaking tub and shower enclosure in a single recessed space. Built from AcrylX composite material, this unit offers a durable, non-porous surface in a White finish. The right-hand drain configuration positions the drain outlet on the right side when facing the unit. At 32.5 gallons capacity and a deep sump height of 14.375 inches, the bathing well is sized for standard residential soaking use. Plumbers and tile contractors install this unit during new construction or full bathroom remodels where three finished walls define the alcove.

This tub shower suite is intended for three-wall alcove installations in residential settings. The rectangular profile measures 53.875 inches in length, 29 inches in width, and 77.5 inches in height, fitting standard alcove rough openings. The 61.5-inch height available for door installation and 53.875-inch width available for door installation allow compatibility with standard aftermarket shower doors and enclosures. The bottom bathing well measures 37.875 inches in length and 19.375 inches in width. This is a soaker-style unit with no massage or jetted system included.

Key Features

• AcrylX composite construction for a durable, low-maintenance bathing surface
• Right-hand drain configuration for standard right-drain alcove rough-ins
• 32.5-gallon capacity with a 14.375-inch deep sump height for full soaking depth
• Four-piece design simplifies transport through doorways and narrow hallways during installation
• 61.5-inch door installation height and 53.875-inch door installation width for aftermarket door compatibility
• White finish with rectangular shape suits standard residential bathroom layouts

Compatibility

Designed for three-wall alcove installations. Door opening dimensions of 53.875 inches wide by 61.5 inches high should be verified against the chosen shower door or enclosure specification before ordering.

Installation Notes

Installation of this alcove tub shower suite should be performed by a licensed plumber in accordance with the applicable International Plumbing Code requirements for tub and shower drain connections and wall substrate preparation. Shut off the water supply and confirm proper drain rough-in location and right-hand orientation before setting the unit. The four-piece surround panels require approved tub surround adhesive and sealant at all seams and corners; do not rely on caulk alone as a structural adhesive. Confirm wall framing meets the manufacturer's stud spacing and backing requirements before panel installation.

Technical Specifications

• Material: AcrylX
• Finish: White
• Mounting: Alcove
• Configuration: Right-Hand Drain
• Shape: Rectangular
• Capacity: 32.5 gallons
• Overall Length: 53.875 inches
• Overall Width: 29 inches
• Overall Height: 77.5 inches
• Bottom Bathing Well Length: 37.875 inches
• Bottom Bathing Well Width: 19.375 inches
• Deep Sump Height: 14.375 inches
• Height Available For Door Installation: 61.5 inches
• Width Available For Door Installation: 53.875 inches
• Massage System: Soaker, no system
• Weight: 144 pounds

Standard Information

• Brand: MAAX
• Manufacturer Part Number: 142000-000-002-095
