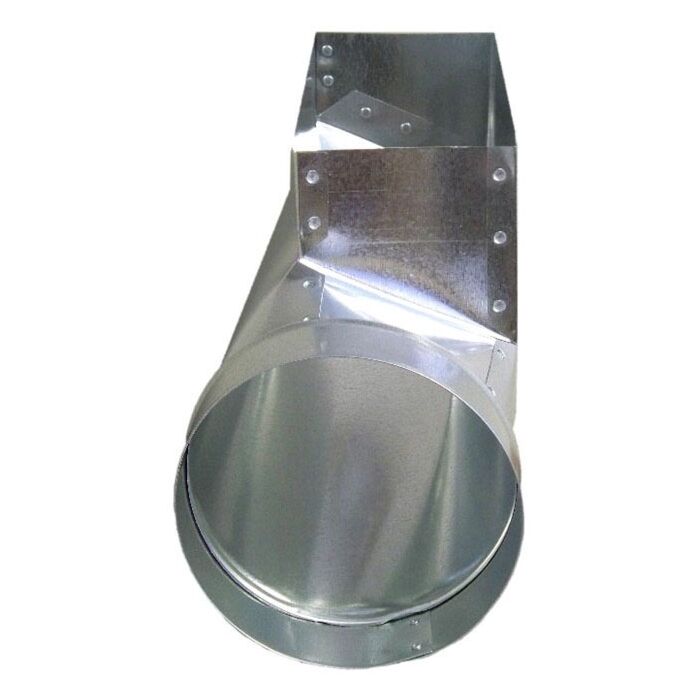

M&M Manufacturing P17R-406 Sheet Metal Duct Boot

Product Description

The M&M Manufacturing P17R-406 is a sheet metal duct boot tailored for register applications. Built from ASTM A653 CS Type B hot-dip galvanized steel, this boot has a thickness of thirty gauge. It is designed with die-punched parts and riveted construction. The dimensions are four inches by ten inches, featuring a six-inch diameter and two-inch throat. This duct boot is engineered to be airtight with hemmed collars.

• Built from ASTM A653 CS Type B hot-dip galvanized steel
• Features die-punched parts and riveted construction
• Airtight design with hemmed collars

Product Highlights

Product Information

Standard Information

• Manufacturer: M&M Manufacturing Inc.
• Manufacturer Part Number: P17R-406

Technical Specifications

• Series/Model: P17R
• Type: Register
• End Direction: Right
• Material: Hot Dip Galvanized Steel
• Material Thickness: 30 Gauge
• Length: 10 inches
• Width: 4 inches
• Circle Size: 6 inches
• Inclusions/Features: 2 Inch Throat
• Applicable Standard: ASHRAE, HARDI, ADI, NHRAW
• Box Quantity: 12
• Keywords: Torpedo Boot
• UNSPSC: 40141900
• UPC: 687384181107
