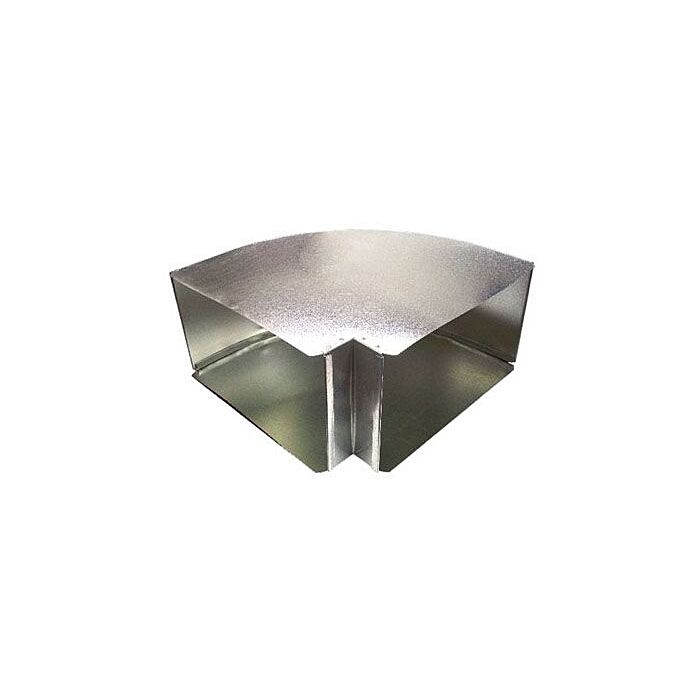

M&M Manufacturing 190-16 Sheet Metal Trunk Duct Elbow

Product Description

The M&M Manufacturing 190-16 is a sheet metal trunk duct elbow designed for efficient airflow management. This rectangular, flat Broadway-type elbow features a 90-degree angle, suitable for various HVAC installations. Constructed from 26-gauge ASTM A653 CS Type B hot-dip galvanized steel, the elbow ensures durability and long-lasting performance.

• Type: Broadway, Rectangular, Flat
• Angle: 90 Degree
• Material: ASTM A653 CS Type B Hot Dip Galvanized Steel

Product Highlights

This product is ideal for connecting trunk lines within ventilation systems where space is limited. It complies with ASHRAE, HARDI, ADI, and NHRAW standards, ensuring it meets industry requirements.

Product Information

Standard Information

• Manufacturer: M&M Manufacturing Inc.
• Manufacturer Part Number: 190-16

Technical Specifications

• Angle: 90 Degree
• Height: 8 inches
• Width: 16 inches
• Material Thickness: 26 Gauge
• Radius: 2 inches x 2 inches
• Inclusions/Features: S-Lock and Drive, Hammer Lock, Square Throat
• Applicable Standard: ASHRAE, HARDI, ADI, NHRAW
• UPC: 687384036056
