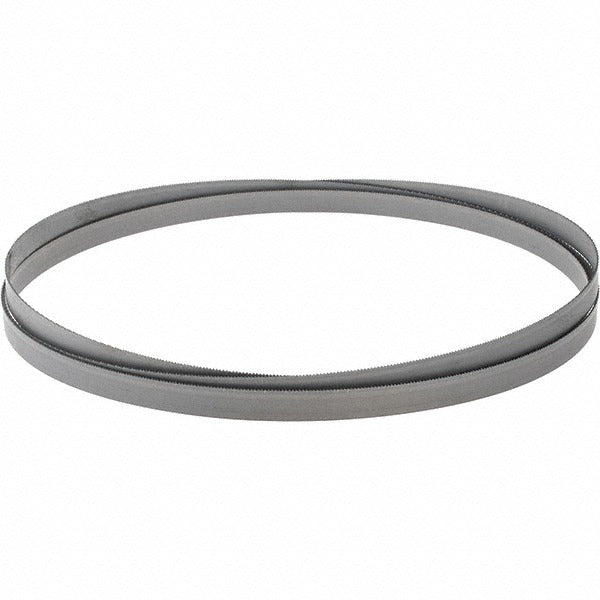

M.k. Morse 3654141380 Bandsaw Blade 138 in 14 Tpi

Product Description

The M.K. MORSE 3654141380 is a welded bi-metal bandsaw blade engineered for consistent, accurate cutting in metal fabrication and industrial shop environments. Measuring 138 inches (11 feet 6 inches) in length and 0.75 inches wide with a 0.035-inch thickness, this blade runs on horizontal and vertical bandsaws sized to accept that loop length. The 14 TPI constant pitch tooth pattern delivers smooth, controlled cuts through aluminum and non-ferrous metals. The M42 high speed steel tooth tips bonded to a flexible backing provide durability under continuous use. Installation and operation are handled by experienced metalworking tradespeople and maintenance technicians.

This blade is designed for contour cutting applications in aluminum, copper, brass, and other non-ferrous metals. The Matrix II Raker series uses a raker tooth set with a straight tooth form and no rake angle, making it well suited for steady feed-rate cutting where surface finish and dimensional accuracy matter. It fits bandsaws that accept an 11-foot 6-inch welded loop blade, commonly found in job shops, fabrication facilities, and industrial maintenance settings.

Key Features

• Bi-metal construction with M42 high speed steel tooth tips for extended blade life
• 14 TPI constant pitch pattern for smooth cuts in non-ferrous metals
• Raker tooth set with straight tooth form for consistent chip clearance
• Flexible back supports contour cutting and curved cuts
• Welded loop construction eliminates blade joining on site
• Matrix II Raker series engineered for aluminum and non-ferrous metal applications

Compatibility

Designed for bandsaws that accept a welded loop blade measuring 138 inches (11 feet 6 inches) in length and 0.75 inches in width. Suitable for cutting aluminum and non-ferrous metals.

Installation Notes

Blade installation should be performed by a qualified metalworking technician or experienced machine operator. Power down and lock out the bandsaw before removing the worn blade or installing a new one. Verify wheel-to-wheel distance, blade guides, and blade tension settings on the machine before operating. Do not exceed the blade speed rating of the host machine, and confirm blade width compatibility with installed guides before tensioning.
