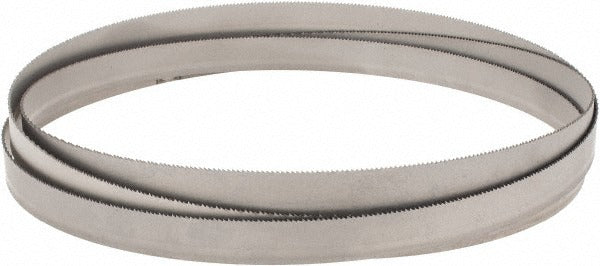

M.k. Morse 3654140930 Welded Bandsaw Blade 14 Tpi

Product Description

The M.K. MORSE 3654140930 is a welded bi-metal bandsaw blade engineered for continuous cutting in metal-cutting applications. Measuring 7 feet 9 inches long and 0.75 inches wide with a 0.035-inch blade thickness, it runs on standard horizontal and vertical bandsaw machines used in fabrication and maintenance shops. The blade is built to M42 high speed steel material grade, with a raker tooth set and straight tooth form at a constant 14 TPI pitch. Straight-back tooth rake and a flexible back type keep tracking stable under sustained feed pressure. Licensed trades and experienced fabricators install and replace these blades as part of routine shop maintenance.

This blade is suited for cutting aluminum and non-ferrous metals in both light fabrication and production environments. The Matrix II Raker series designation indicates it is optimized for raker-set, constant-pitch cutting cycles where consistent chip clearance matters. It is appropriate for use in residential shop setups and commercial fabrication facilities alike, anywhere a contour or straight cut in non-ferrous stock is required. The 14 TPI constant pitch supports smooth finishes on softer metals without tooth loading or blade deflection under normal operating conditions.

Key Features

• M42 high speed steel tooth material for extended blade life in non-ferrous metal cutting
• 14 TPI constant pitch delivers consistent chip clearance and smooth cut finish
• Raker tooth set reduces vibration and heat buildup during continuous cuts
• Flexible back type supports contour cutting capability
• 0.035-inch blade thickness compatible with standard bandsaw wheel gauges
• Welded construction provides a continuous, seamless loop for reliable tracking

Compatibility

Designed as an OEM-style replacement welded bandsaw blade for bandsaws accepting a 7 feet 9 inch loop, 0.75-inch-wide blade with 0.035-inch thickness.

Installation Notes

Bandsaw blade replacement is typically performed by machinists or experienced shop technicians. Before installing, power down and lock out the bandsaw per OSHA lockout/tagout procedures. Verify wheel diameter, blade guide spacing, and blade tension settings are appropriate for a 0.75-inch-wide blade before tensioning. Do not operate the blade above the manufacturer-rated speed for the material being cut.
