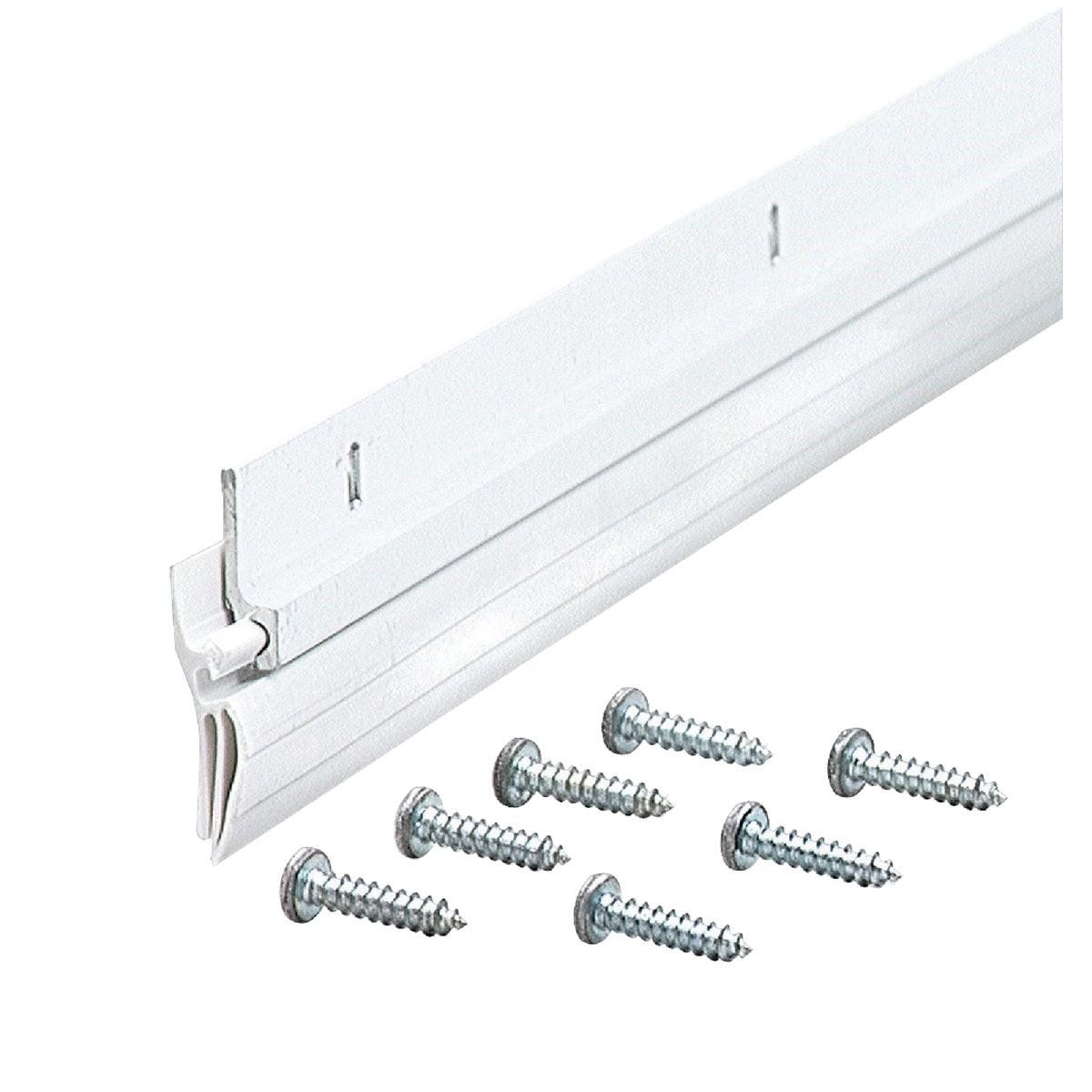

M-d Building Products 05215 Aluminum Vinyl Door Sweep

Product Description

The M-D BUILDING PRODUCTS 05215 is a door sweep designed to seal the gap between the bottom of a door and the threshold, blocking drafts, dust, and air infiltration. Built on an extruded aluminum mounting strip with an attached vinyl sweep blade, this Style DV-1 unit delivers a dependable barrier against air leakage at the sill line. The vinyl sweep element is flexible enough to maintain contact across uneven or irregular floor surfaces, making it well suited for installations where the floor is not perfectly level. Slotted mounting holes allow for vertical adjustment during installation, helping technicians and installers dial in the correct contact pressure without removing and repositioning the unit.

The 05215 is intended for residential door applications where draft control and basic weathersealing are required. It fits interior or exterior door bottoms and is particularly useful on entry doors, utility room doors, and garage-to-house doors where under-door air movement is a common complaint. The white finish blends with painted door bottoms. This product is installed by weatherization contractors, general carpenters, and property maintenance technicians.

Key Features

• Extruded aluminum mounting strip provides a rigid, corrosion-resistant base
• Vinyl sweep blade conforms to uneven floor surfaces for a consistent seal
• Slotted mounting holes allow vertical adjustment without full reinstallation
• White finish suitable for painted door applications
• 36-inch length covers standard residential door widths and can be trimmed to fit narrower openings

Compatibility

Designed as an OEM-style replacement or new-installation door sweep for standard residential door bottoms requiring a surface-mounted aluminum and vinyl sweep assembly.

Installation Notes

Installation is typically performed by a carpenter or general maintenance technician using a tape measure, drill, and screwdriver. Close and latch the door before marking the sweep position to ensure the vinyl blade contacts the floor evenly across the full width. The sweep can be cut to length with a hacksaw or tin snips if the door opening is narrower than 36 inches. No special tools or permits are required for a standard residential door sweep installation.

Technical Specifications

• Width: 1-1/4 inches
• Length: 36 inches
• Material: Extruded aluminum with vinyl sweep
• Finish/Color: White
• Weight: 0.4 pounds
• Style: DV-1
• Unit of Measure: Each

Standard Information

• Brand: M-D BUILDING PRODUCTS
• Manufacturer Part Number: 05215
