M-d Building Products 05090 Aluminum Vinyl Door Sweep

Product Description

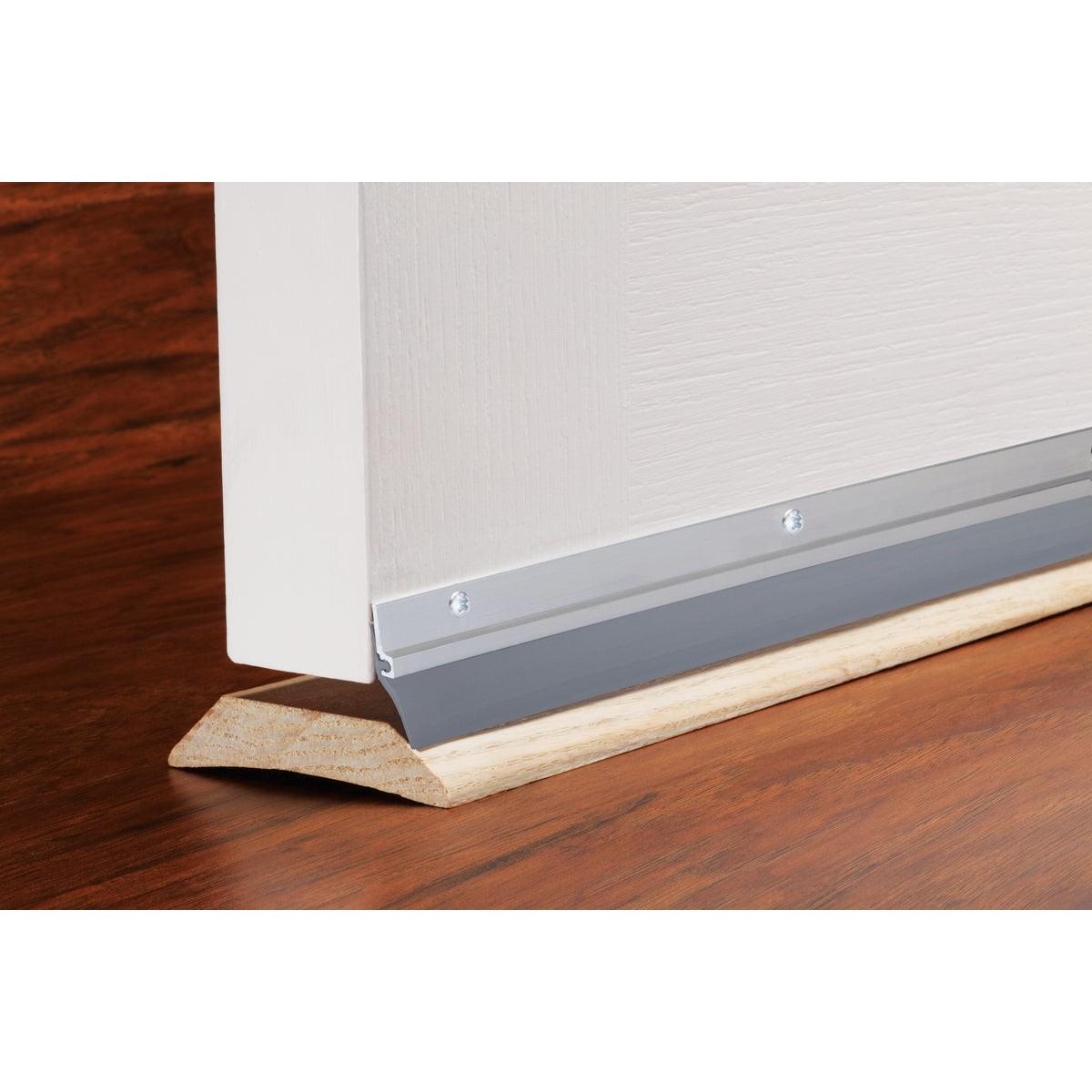

The M-D BUILDING PRODUCTS 05090 is an extruded aluminum door sweep with an integrated vinyl sweep blade, designed to seal the gap between the bottom of a door and the threshold. The aluminum carrier strip measures 1-1/4 inches wide by 36 inches long and mounts to the face of the door bottom. The flexible vinyl sweep conforms to uneven or slightly irregular floor surfaces to block drafts, dust, and light infiltration. Slotted mounting holes allow horizontal adjustment for a precise fit without relocating fasteners. Installers in residential and light commercial settings use this sweep as a quick, low-cost weathersealing solution for standard interior and exterior doors.

The 05090 suits standard 36-inch residential and light commercial door applications where under-door air infiltration needs to be addressed. It is suited for installation on wood, hollow-core, and metal doors in entry doors, utility rooms, and similar locations. The vinyl sweep material is durable enough for everyday door operation and performs across typical indoor temperature ranges. The slotted holes allow field adjustment to match varying floor gaps without cutting or shimming the carrier strip, making this a practical choice for service calls, tenant improvements, and new construction punch-out work.

Key Features

• Extruded aluminum carrier strip provides rigid, corrosion-resistant backing
• Flexible vinyl sweep blade seals uneven floor surfaces without binding
• Slotted mounting holes allow easy horizontal adjustment on the door face
• 36-inch length fits standard door widths; can be cut to fit narrower openings
• Lightweight at 0.409 pounds for easy one-person installation

Compatibility

Designed as a standard-profile door sweep for residential and light commercial 36-inch doors. Compatible with most wood, hollow-core, and steel door bottoms where a face-mount sweep is appropriate.

Installation Notes

This sweep is installed by a general contractor, handyperson, or door hardware technician using basic hand tools. Remove the door or prop it securely before marking fastener locations through the slotted holes. Align the vinyl blade so it contacts the floor surface with light, consistent pressure across the full width to ensure an effective seal without causing excessive drag. Do not over-tighten fasteners through the slotted holes, as this will prevent adjustment and may distort the aluminum carrier.

Technical Specifications

• Width: 1-1/4 inches
• Length: 36 inches
• Weight: 0.409 pounds
• Carrier Material: Extruded aluminum
• Sweep Material: Vinyl
• Finish/Color: Silver
• Style: DV-1
• Unit of Measure: Each

Standard Information

• Brand: M-D BUILDING PRODUCTS
• Manufacturer Part Number: 05090
