M.A. Ford MAFOR-61206 61125002 General Purpose Single End Countersink With Tang Drive (1-1/4 in Dia Body, 1/2 in Dia Shank)

Product Description

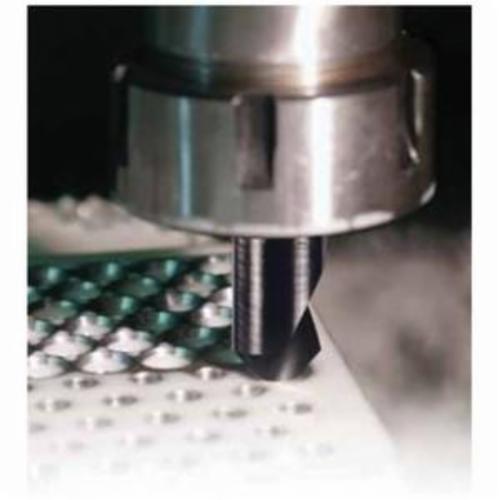

The M.A. Ford MAFOR-61206 is a general-purpose single end countersink designed for precise cutting. This tool is suitable for countersinking, chamfering, or deburring applications.

• Features a body diameter of one and one-fourth inches.
• Includes a half-inch diameter shank and one flute for efficient cutting.
• Constructed from high-speed steel (HSS) for durability.

Product Highlights

This countersink is engineered to maintain a sharp cutting edge, thanks to its unique heat treatment process.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-61206

Technical Specifications

• Body Diameter: 1-1/4 in
• Shank Diameter: 1/2 in
• Nose Diameter: 0.12 in
• Overall Length: 3 in
• Centerline Angle: 41 deg
• Included Angle: 82 deg
• Number of Flutes: 1
• Cutting Direction: Right Hand
• Minimum Cutting Diameter: 0.12 in
• Material: HSS
• Finish: Uncoated
• Type: General Purpose Single End
• Series: 61 Series
