M.A. Ford MAFOR-61156 Uniflute 61075002 General Purpose Single End Countersink 3/4 in Dia Body

Product Description

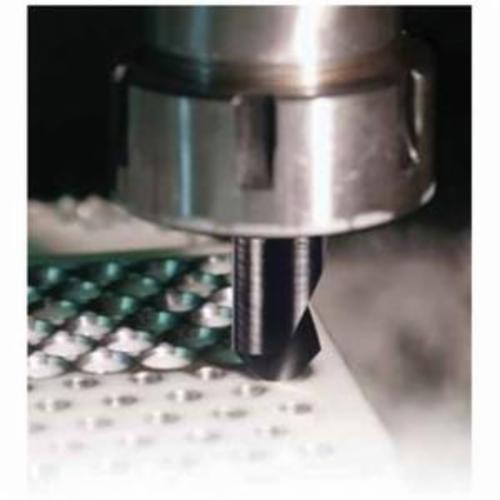

The M.A. Ford MAFOR-61156 is a general purpose single end countersink. It is designed for effective countersinking, chamfering, and deburring applications. Made from high-speed steel (HSS), this countersink features a 3/4 inch diameter body and a 1/2 inch shank diameter.

• Made from heat-treated high-speed steel
• Self piloting with no secondary burs formed
• Versatile use on machine tools and handheld applications

Product Highlights

This countersink is engineered to provide a tough cutting edge that maintains sharpness over time. The steam homogeneous treatment extends tool life by reducing frictional heat.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-61156

Technical Specifications

• Body Diameter: 3/4 in
• Shank Diameter: 1/2 in
• Overall Length: 2-3/4 in
• Nose Diameter: 0.12 in
• Number of Flutes: 1
• Included Angle: 82 deg
• Centerline Angle: 41 deg
• Cutting Direction: Right Hand
• Minimum Cutting Diameter: 0.12 in
• Finish: Uncoated
• Series: 61 Series
