M.A. Ford MAFOR-61131 61062502 General Purpose Single End Countersink 5/8 in Dia Body

Product Description

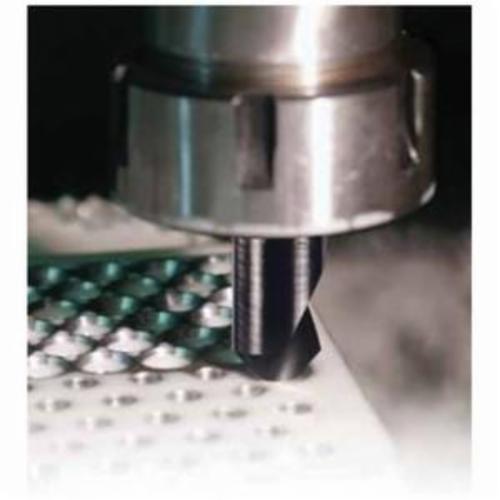

M.A. Ford® MAFOR-61131 is a high-speed steel countersink with a diameter of five-eighths inches and a quarter-inch shank. This tool is designed for countersinking, chamfering, or deburring applications. It features a single flute that offers effective right-hand cutting, making it ideal for precision metalworking tasks.

• Heat-treated for hardness
• Self-piloting design prevents chatter
• Resharpenable for extended use

Product Highlights

This countersink is heat treated in a controlled vacuum furnace to ensure durability. An additional steam homogeneous process is used, providing a tougher cutting edge that maintains sharpness longer and retains cutting oil to reduce friction.

Product Information

Standard Information

• Brand: M.A. Ford®
• Type: General Purpose Single End

Technical Specifications

• Centerline Angle: 41 deg
• Cutting Direction: Right Hand
• Finish: Uncoated
• Nose Diameter: 0.06 in
• Overall Length: 2-1/4 in
• Series: 61 Series
• Shank Type: Straight
• Body Diameter: 5/8 in
• Shank Diameter: 1/4 in
• Number of Flutes: 1
• Included Angle: 82 deg
• Minimum Cutting Diameter: 0.06 in
• Material: HSS
