M.A. Ford MAFOR-61121 61050006 General Purpose Single End Countersink, 1/2 in Dia Body, 1/4 in Dia Shank

Product Description

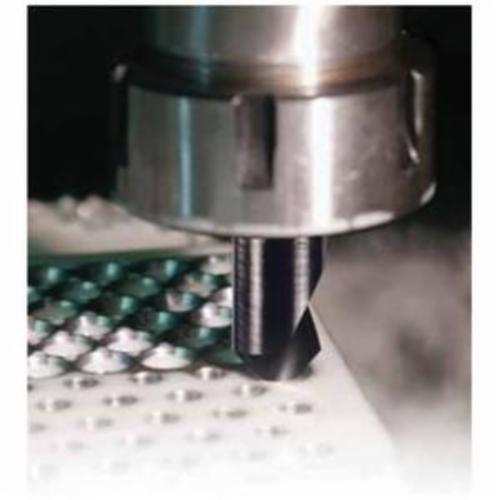

The M.A. Ford MAFOR-61121 is a high-speed steel (HSS) general purpose single end countersink. This tool features a half-inch diameter body and a quarter-inch diameter shank. It is designed for countersinking, chamfering, and deburring applications.

• Heat treated in an electronic vacuum furnace for durability.
• Steam homogeneous process enhances toughness and sharpness.
• Compatible with various hole diameters and resharpenable for extended life.

Product Highlights

This countersink is ideal for both machine tool and handheld tool applications, providing reliable performance across a range of uses.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-61121

Technical Specifications

• Body Diameter: 1/2 in
• Shank Diameter: 1/4 in
• Overall Length: 2 in
• Nose Diameter: 0.06 in
• Included Angle: 120 deg
• Centerline Angle: 60 deg
• Number of Flutes: 1
• Cutting Direction: Right Hand
• Material: HSS
• Finish: Uncoated
