M.A. Ford MAFOR-61096 Uniflute 61037506 61 Series General Purpose Single End Countersink

Product Description

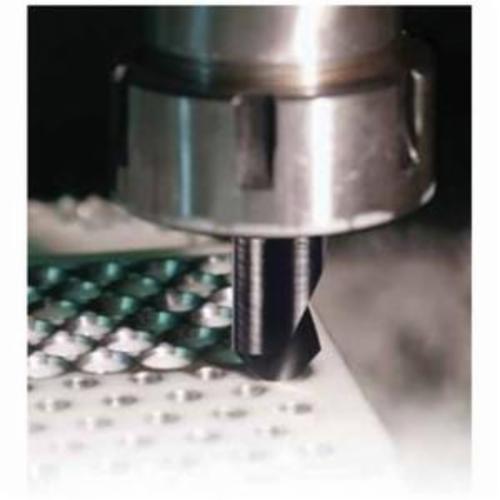

The M.A. Ford Uniflute 61037506 is a general purpose single end countersink, ideal for various holemaking applications. This product features a three-eighths inch body diameter and a one-quarter inch shank diameter. The design includes one flute and a right-hand cutting direction, making it suitable for chamfering and deburring tasks.

• Heat treated for durability
• Steam homogeneous process improves cutting edge hardness
• Self-piloting design for accuracy

Product Highlights

Designed for precision drilling, this countersink ensures cleanliness and accuracy in your work, providing an effective solution for countersinking various materials.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-61096

Technical Specifications

• Body Diameter: 3/8 in
• Shank Diameter: 1/4 in
• Overall Length: 2 in
• Nose Diameter: 0.06 in
• Flutes: 1
• Included Angle: 120 deg
• Centerline Angle: 60 deg
• Cutting Direction: Right Hand
• Material: HSS
