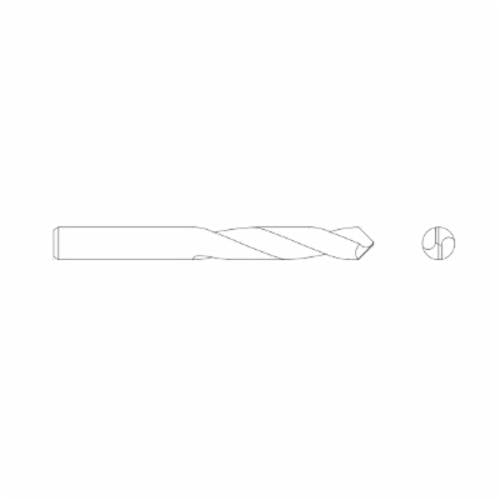

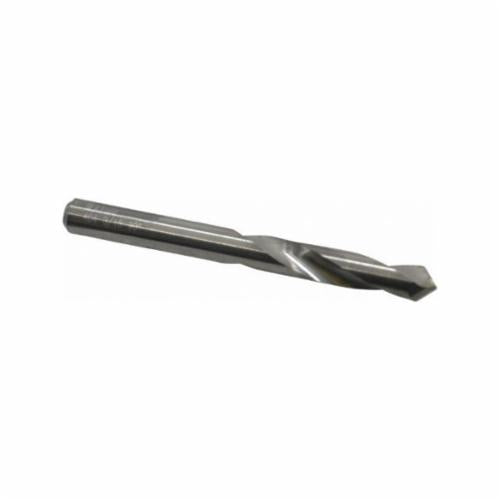

M.A. Ford MAFOR-40413 40425000 Twister GP/404 General Purpose Screw Machine Drill 1/4 in

Product Description

M.A. Ford MAFOR-40413 is a general purpose screw machine drill. This drill is part of the Twister GP/404 series with a diameter of one-fourth inch and an overall length of two inches. It features a spiral flute design, making it effective for precision drilling tasks. The drill is ideal for materials such as cast iron, hardened steel, stainless steel, and non-ferrous metals.

• Designed for accurate spotting on NC machines.
• Solid carbide construction ensures durability.
• Bright finish that enhances chip flow in soft materials.

Product Highlights

High rigidity and efficiency for drilling operations.

Product Information

Standard Information

• Brand: M.A. Ford
• Series: Twister GP/404

Technical Specifications

• Diameter: 1/4 in
• Overall Length: 2 in
• Flute Length: 1 in
• Cutting Depth: 3XD
• Flute Type: Spiral
• Shank Type: Straight
• Point Angle: 90 deg
• Cutting Edge Material: Solid Carbide
• Cutting Direction: Right Hand
• Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
• Finish: Bright
