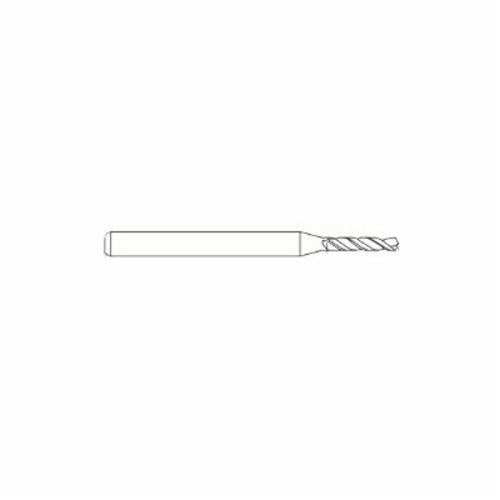

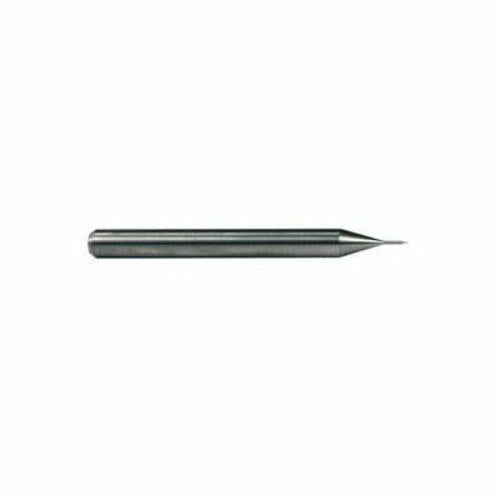

M.A. Ford MAFOR-32241 30203700 Twister GP 302 General Purpose Circuit Board Drill, #63 Drill - Wire, 0.037 in Drill - Decimal Inch, 1/8 in Shank

Product Description

The M.A. Ford MAFOR-32241 is a general-purpose circuit board drill designed for efficient hole-making in various materials. With a #63 drill size and a decimal inch measurement of 0.037 inches, this drill features a 1/8 inch shank and is part of the Twister GP 302 series.

• Solid carbide construction for enhanced rigidity.
• Five times the drill diameter cutting depth.
• 130-degree point angle designed for precision drilling.

Product Highlights

This drill bit is suitable for use on cast iron, hardened steel, special alloys, stainless steel, and non-ferrous metals.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-32241

Technical Specifications

• Overall Length: 1.5 inches
• Flute Length: 0.4 inches
• Cutting Depth: 5xD
• Drill Size - Wire: #63
• Drill Size - Decimal Inch: 0.037 inches
• Shank Size: 1/8 inches
• Point Angle: 130 degrees
• Cutting Edge Material: Solid Carbide
• Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel, and Non-Ferrous Metal
