M.A. Ford MAFOR-30565 300 General Purpose Heavy Duty Circuit Board Drill, #3 Drill - Wire, 0.213 in

Product Description

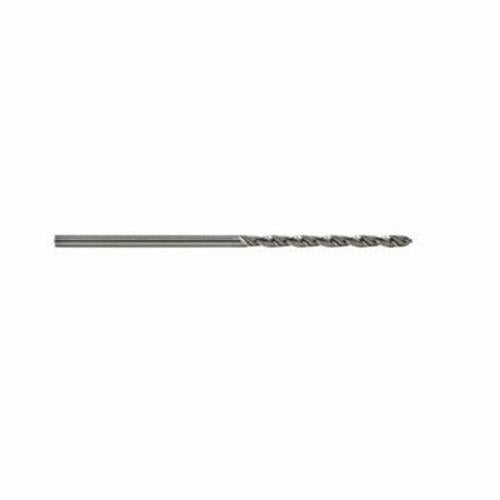

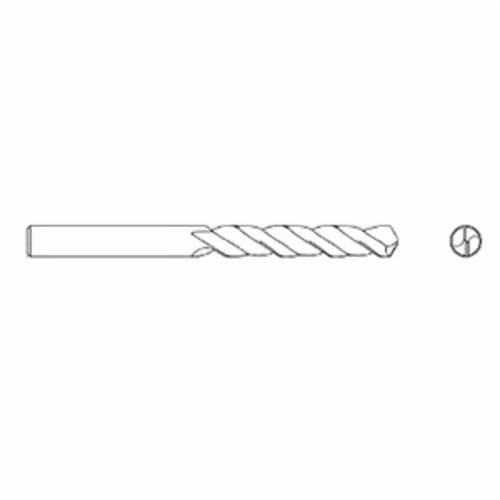

M.A. Ford MAFOR-30565 is a heavy-duty circuit board drill designed for general-purpose applications. This drill features a number three wire size with a decimal size of 0.213 inches. It has a length of one and one-half inches and offers a cutting depth of five times the diameter. The drill is ideal for smooth, burr-free drilling in circuit boards and various laminates.

• Designed for general purpose drilling
• Solid carbide construction for improved durability
• Effective for use on cast iron, stainless steel, and tough materials

Product Highlights

The Twister GP 300 series is recognized for its performance and reliability.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-30565

Technical Specifications

• Drill Size - Wire: #3
• Drill Size - Decimal Inch: 0.213 in
• Overall Length: 1-1/2 in
• Flute Length: 3/4 in
• Cutting Depth: 5XD
• Point Angle: 118 deg
• Flute Type: Spiral
• Cutting Direction: Right Hand
