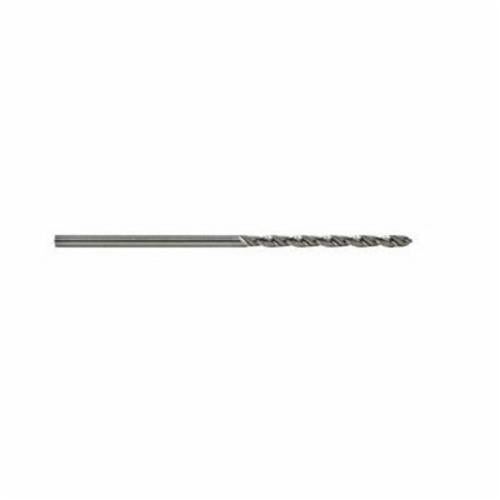

M.A. Ford MAFOR-30553 30020400 Twister GP 300 General Purpose Heavy Duty Circuit Board Drill

Product Description

The M.A. Ford MAFOR-30553 is a General Purpose Heavy Duty circuit board drill designed for precision and efficiency. This drill features a #6 wire size and a decimal inch diameter of 0.204 inches. It has a spiral flute design that enhances chip evacuation, ensuring a smooth drilling process. The overall length of this drill is one and one-half inches, with a flute length of three-quarters of an inch, making it suitable for various applications.

• Applicable to materials like cast iron and stainless steel
• Right hand cutting direction for effective operation
• Solid carbide cutting edge for durability and heat resistance

Product Highlights

Perfect for drilling in circuit boards and laminates, this drill offers minimal wander and maximum precision.

Product Information

Standard Information

• Brand: M.A. Ford
• Series: Twister GP 300

Technical Specifications

• Type: General Purpose Heavy Duty
• Drill Size - Wire: #6
• Drill Size - Decimal Inch: 0.204 in
• Overall Length: 1-1/2 in
• Flute Length: 3/4 in
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: Solid Carbide
• Finish: Bright
• Point Angle: 118 deg
• Material: Solid Carbide
• Applicable Materials: Cast Iron, Hardened Steel, Special Alloys, Stainless Steel, Steel and Non-Ferrous Metal Materials
