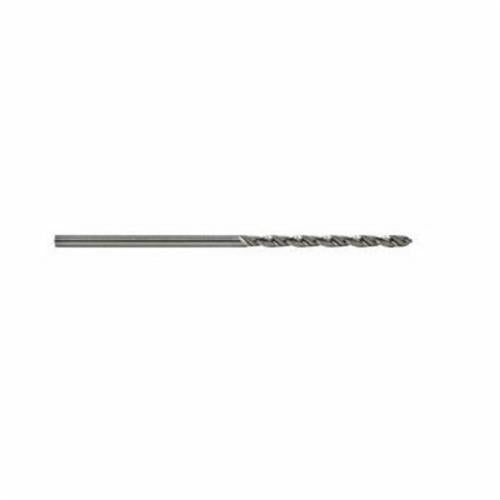

M.A. Ford MAFOR-30441 30013600 Twister GP 300 General Purpose Heavy Duty Circuit Board Drill, #29 Drill - Wire, 0.136 in Drill - Decimal Inch

Product Description

The M.A. Ford MAFOR-30441 Circuit Board Drill is a heavy-duty, general-purpose drill designed for precision in circuit board applications. This drill features a #29 wire size and a decimal inch size of 0.136. It has an overall length of one and a half inches and offers a cutting depth of five times the diameter.

• Designed for optimal chip evacuation and high feed rates
• Constructed from solid carbide for increased rigidity
• Applicable for various materials including stainless steel and hardened steel

Product Highlights

The Twister GP 300 drill is made for smooth and burr-free drilling in circuit boards and laminates.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-30441

Technical Specifications

• Overall Length: 1-1/2 inches
• Flute Length: 3/4 inches
• Cutting Depth: 5XD
• Material: Solid Carbide
• Point Angle: 118 degrees
• Flute Type: Spiral
• Shank Type: Straight
• Drill Size - Wire: #29
• Drill Size - Decimal Inch: 0.136 inches
• Cutting Direction: Right Hand
• Finish: Bright
• Applicable Materials: Cast Iron, Hardened Steel, Special Alloys, Stainless Steel, Steel and Non-Ferrous Metal Materials
