M.A. Ford MAFOR-30353 30009950 Twister GP 300 General Purpose Heavy Duty Circuit Board Drill, #39 Drill - Wire, 0.0995 in Drill - Decimal Inch

Product Description

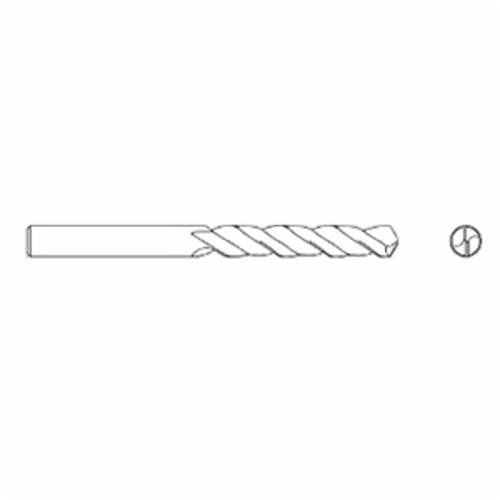

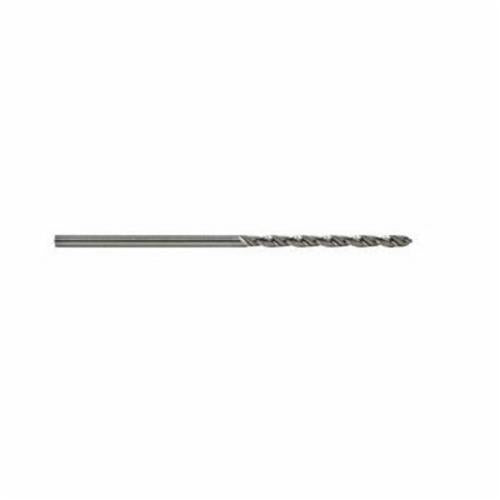

M.A. Ford Circuit Board Drill, MAFOR-30353, is a general purpose heavy duty drill designed for circuit board applications. This drill features a #39 wire size and measures 0.0995 inches in decimal. With an overall length of one and one-half inches, it offers a five times drill depth and a spiral flute design. The drill has a straight shank with a point angle of one hundred eighteen degrees and is engineered for right-hand cutting direction.

• General purpose heavy duty for circuit board and laminate drilling
• Solid carbide construction for improved rigidity and heat resistance
• Spiral flute design for efficient chip evacuation

Product Highlights

This drill is suitable for smooth, burr-free drilling in circuit boards and various laminates, making it ideal for electronics industries.

Product Information

Standard Information

• Brand: M.A. Ford
• MPN: MAFOR-30353

Technical Specifications

• Drill Size - Wire: #39
• Drill Size - Decimal Inch: 0.0995 in
• Overall Length: 1-1/2 in
• Flute Length: 5/8 in
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Point Angle: 118 deg
• Material: Solid Carbide
• Finish: Bright
• Flute Type: Spiral
• Series: Twister GP 300
• Applicable Materials: Cast Iron, Hardened Steel, Special Alloys, Stainless Steel, Steel and Non-Ferrous Metal
