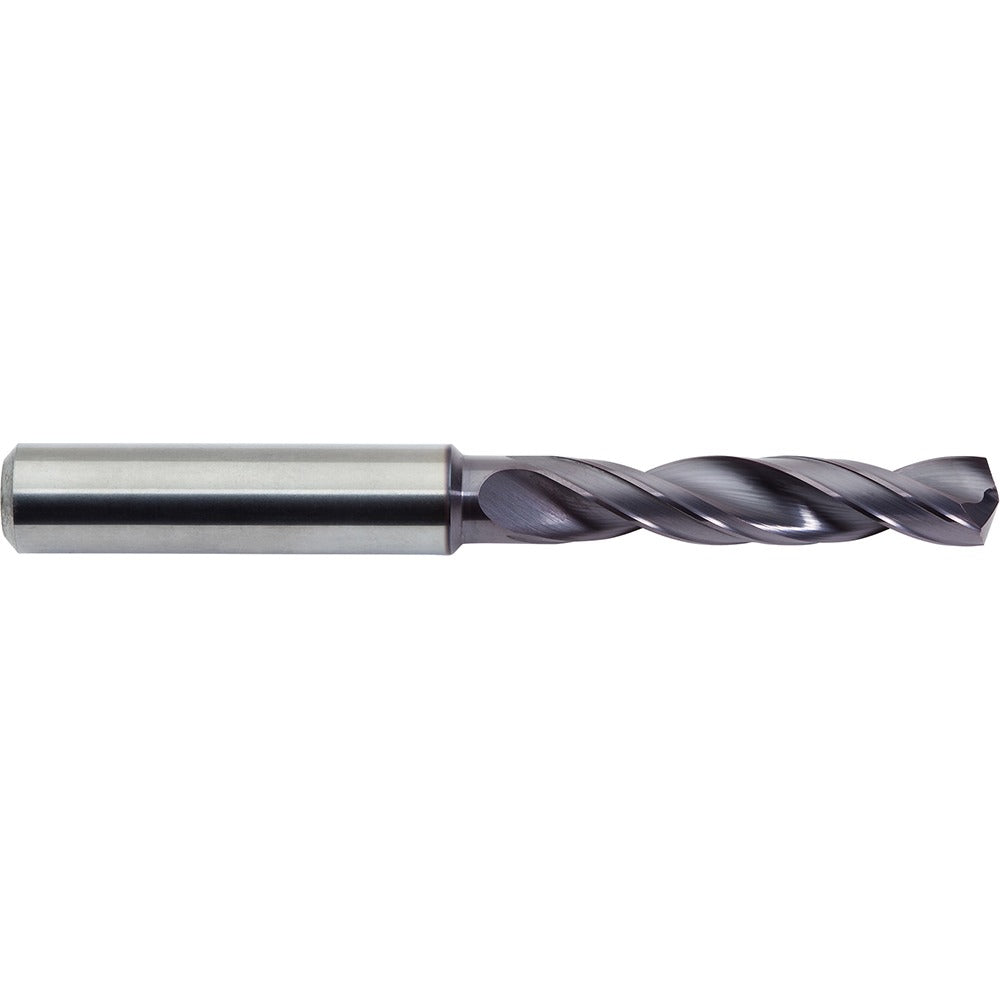

M.a. Ford CXDSS1406AP 9/64 in Carbide Drill Bit 142 Deg

Product Description

The M.A. FORD CXDSS1406AP is a stub-length (screw machine length) solid carbide drill bit engineered for high-performance drilling in demanding materials. It features a 142-degree drill point angle optimized for self-centering entry and reduced thrust in hard metals, and an ALtima Plus AlCrN coating that extends tool life by resisting heat and abrasion. At 0.1406 inches (9/64 inch) in diameter with a 2.44-inch overall length, this two-flute, right-hand-cut bit is designed for production environments where rigidity, accuracy, and tool longevity are priorities. Coolant-through capability supports high-feed drilling operations.

This drill bit is suited for precision drilling in cast iron, stainless steel, carbon and alloy steels, and titanium. The stub-length body minimizes deflection, making it a reliable choice for close-tolerance holes in CNC machining centers, automated screw machine setups, and general production drilling. The helical flute design promotes efficient chip evacuation in these difficult-to-machine materials. It is part of the M.A. FORD Series CXDSS, which covers the 0.1000 to 0.1500 inch diameter range and uses a 3xD flute-to-diameter ratio for stability in short-reach applications.

Key Features

• Solid carbide construction provides rigidity and wear resistance in hard and abrasive workpiece materials
• ALtima Plus AlCrN coating resists heat and oxidation, extending tool life in high-speed and dry-cutting applications
• 142-degree split point angle promotes accurate self-centering and reduces walking on entry
• Coolant-through design delivers coolant directly to the cutting edge for heat management in deep or high-feed holes
• Stub (screw machine) length body minimizes overhang and deflection for tighter hole tolerances
• Right-hand helical flutes with two margins support consistent chip evacuation and hole surface finish

Compatibility

Designed for use in cast iron, stainless steel, steel, and titanium workpieces. Part of the M.A. FORD Series CXDSS, covering the 0.1000 to 0.1500 inch decimal inch diameter range.

Installation Notes

This bit is intended for use by machining professionals in CNC or manual drilling setups. Ensure the spindle and toolholder are clean and properly torqued before seating the straight-cylindrical shank. Activate coolant-through supply before engaging the cut when using internal coolant systems. Inspect the cutting edges for chipping or wear before each use, as carbide tooling is brittle and should not be subjected to interrupted cuts beyond its rated application.
