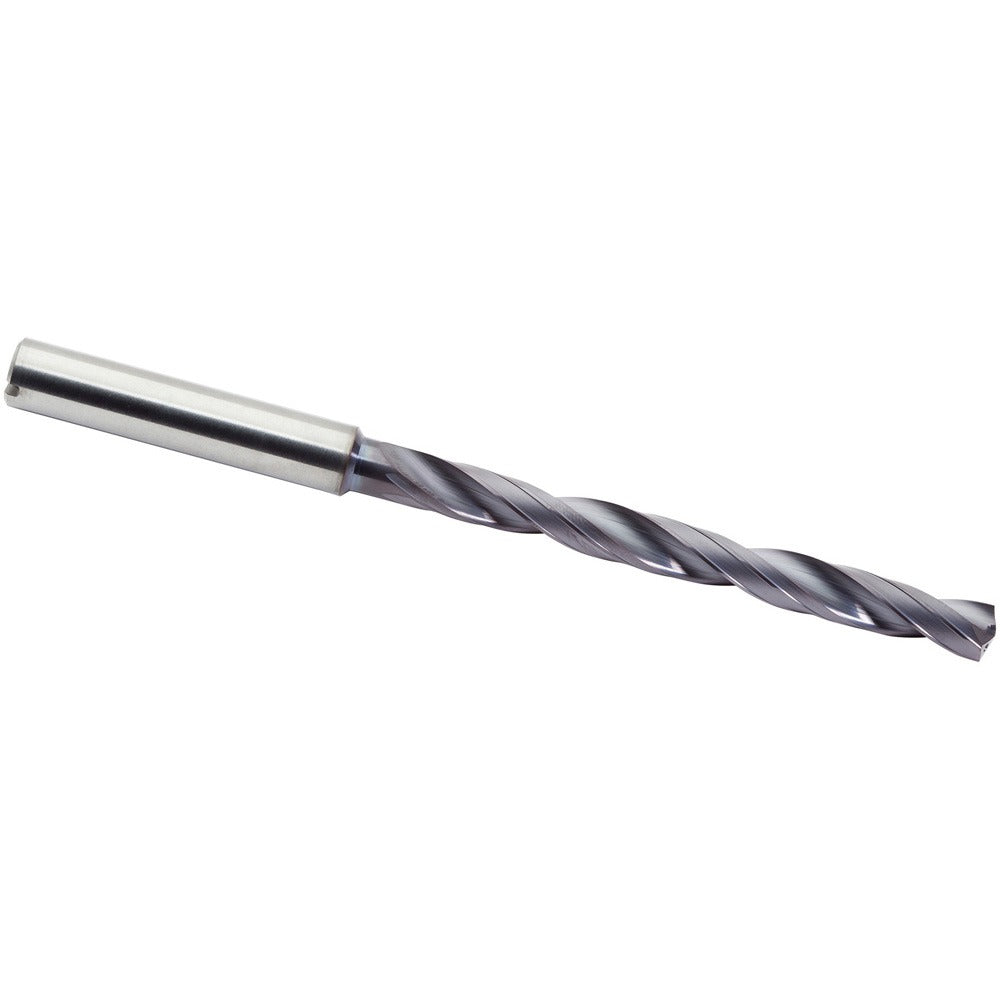

M.a. Ford. CXDCL1360AP Taper Length Drill 0.1360 in Carbide

Product Description

The M.A. FORD. CXDCL1360AP is a solid carbide taper length drill bit designed for precision hole-making in demanding materials. It features a 142-degree helical point angle and an ALtima Plus coating that extends tool life in high-wear applications. The straight-cylindrical shank measures 0.1575 inches in diameter, and the flute length-to-diameter ratio of 8xD supports deep-hole drilling with reduced deflection. Coolant-through capability allows internal fluid delivery to the cutting zone, improving chip evacuation and thermal control. This drill is used primarily by machinists and tool-and-die professionals working on close-tolerance parts in production or job-shop environments.

This drill bit is suited for drilling cast iron, stainless steel, carbon steel, and titanium. The right-hand spiral flute geometry and helical point promote self-centering and clean entry without a center punch in many setups. The double-margin design provides additional guidance along the hole wall, which is critical when drilling gummy or work-hardening alloys such as stainless steel and titanium. Overall length is 3.62 inches, making it appropriate for moderate-depth holes where taper length reach is needed beyond jobber-length tooling.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• ALtima Plus finish reduces friction and extends tool life in high-heat cutting conditions
• 142-degree helical point angle for aggressive entry and reduced thrust in hard alloys
• Coolant-through design delivers cutting fluid directly to the drill tip
• Double-margin geometry improves hole straightness and finish quality
• 8xD flute-length-to-diameter ratio supports deeper hole depths than standard jobber drills

Compatibility

Designed for use in CNC machining centers and drill presses with straight-cylindrical shank toolholders or collet chucks accepting a 0.1575-inch shank diameter. Rated material applications include cast iron, stainless steel, steel, and titanium.

Installation Notes

Installation and use should be performed by qualified machinists familiar with carbide tooling practices. Ensure the spindle and toolholder are clean and free of runout before seating the shank, as carbide is brittle and sensitive to lateral shock loads. Always confirm coolant-through circuits are active before engaging the cut when using the internal coolant feature. Do not use this drill in hand-held portable drill applications.
