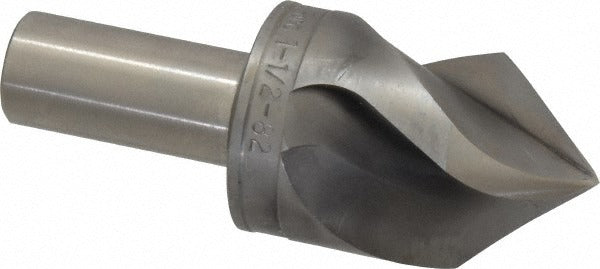

M.a. Ford 92150002 Countersink 82 Degree 3 Flute Hss

Product Description

The M.A. FORD 92150002 is a single-end, three-flute countersink designed for chamfering, countersinking, and deburring operations in a wide range of materials. Built from high-speed steel with a bright, uncoated finish, it carries an 82-degree included angle and a 41-degree centerline angle. The 3/4-inch straight-cylindrical shank seats securely in standard toolholders, and the 3-7/8-inch overall length provides reach suited to both bench and machine applications. This tool does not include a pilot. It is intended for machinists, tool-and-die technicians, and maintenance professionals working on metal and plastic workpieces.

This countersink is appropriate for use on aluminum, brass, magnesium, magnesium alloy, high-nickel steel, Monel, and plastic substrates. It is suited to production environments and job-shop applications where accurate 82-degree seat angles are required, such as preparing holes for flat-head fasteners in aerospace, general manufacturing, and maintenance-repair operations. The right-hand cutting direction is compatible with standard spindle rotation on mills, drill presses, and CNC machining centers.

Key Features

• 82-degree included angle with 41-degree centerline angle for accurate flat-head fastener seat preparation
• Three flutes for balanced cutting action and improved chip evacuation
• High-speed steel construction provides toughness across a broad range of workpiece materials
• Bright, uncoated finish suitable for use with cutting fluids on aluminum, brass, plastics, and nickel alloys
• 3/4-inch straight-cylindrical shank for compatibility with standard toolholders and collets
• No pilot required, allowing use across variable hole sizes without additional setup

Compatibility

Compatible with aluminum, brass, high-nickel steel, magnesium, magnesium alloy, Monel, and plastic workpieces. Designed as a standard single-end countersink for use in mills, drill presses, and CNC machining centers accepting a 3/4-inch straight-cylindrical shank.

Installation Notes

This tool is installed and serviced by machinists or toolroom technicians. Secure the shank fully in a collet or toolholder before operation and verify runout before cutting. Always bring the spindle to a full stop before changing or inspecting the tool. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain finish quality.
