M.a. Ford 61T050004 Countersink 100 Degree 1/2 Inch Hss Tin

Product Description

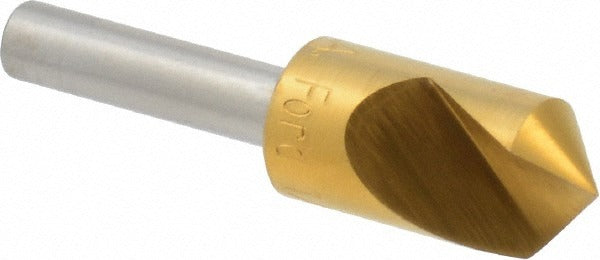

The M.A. FORD 61T050004 is a single-flute countersink designed for precise countersinking operations in metalworking and fabrication applications. Built from high-speed steel with a titanium nitride (TiN) coating, this tool delivers a 100-degree included angle and a maximum cutting diameter of 0.5 inches. The straight-cylindrical shank measures 0.25 inches in diameter with a 2-inch overall length. It is sized and configured for use in drill presses, CNC machining centers, and hand-held power tools. Machinists, tool-and-die workers, and fabricators install this type of countersink to create flush-seat recesses for fasteners in a wide range of materials.

This countersink is suited for countersinking operations across a broad spectrum of materials including alloy steel, aluminum, brass, cast iron, high-nickel steel, high-tensile steel, magnesium, magnesium alloy, mild steel, Monel, plastic, and stainless steel. Its single-flute geometry reduces chatter and produces a cleaner finish in gummy or difficult-to-machine materials. The 100-degree angle is commonly specified for aerospace and general-purpose fastener seating where standard 82-degree or 90-degree tools are not appropriate.

Key Features

• 100-degree included angle for specialized fastener seating applications
• Single-flute design reduces chatter and improves surface finish
• TiN coating extends tool life and reduces friction during cutting
• High-speed steel construction handles a wide range of work materials
• 0.25-inch straight-cylindrical shank fits standard collets and chucks
• Right-hand cutting direction for conventional spindle rotation

Compatibility

Designed as an OEM-style single-flute countersink compatible with standard 0.25-inch straight-shank collets and drill chuck systems used in drill presses, milling machines, and CNC machining centers.

Installation Notes

Installation and use of this countersink should be performed by a qualified machinist or fabricator. Secure the 0.25-inch shank fully into the collet or chuck before operation and verify runout before cutting. Power down and lock out the machine spindle before changing or adjusting tooling. Do not exceed the recommended feed rates or spindle speeds for the work material being countersunk.
