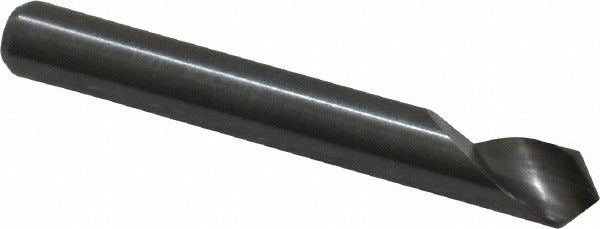

M.a. Ford. 60018704 Countersink 100 Deg 1 Flute Carbide

Product Description

The M.A. FORD. 60018704 is a single-flute solid carbide countersink designed for precision countersinking operations across a wide range of materials. It features a 100-degree included angle (50-degree centerline angle) and a 3/16-inch straight cylindrical shank. The bright/uncoated finish maintains close tolerances straight from the tool. At 1-1/2 inches overall length with a 0.0450-inch tip diameter, this countersink is suited for tight-clearance applications where a compact tool is required. Machinists and tool-and-die professionals install this type of tool in CNC machining centers, drill presses, and manual mills.

This countersink is applicable in both production and job-shop environments. The single-flute geometry reduces chatter on softer materials and provides clean entry on harder alloys. It is rated for use on alloy steel, aluminum, brass, cast iron, high-nickel steel, high-tensile steel, magnesium, magnesium alloy, mild steel, Monel, plastic, and stainless steel. The 100-degree angle suits countersinking for flat-head fasteners with that specific seat angle requirement. It does not include a pilot and is sold as a single-end tool.

Key Features

• 100-degree included angle for flat-head fastener seating
• Single flute reduces chatter and simplifies sharpening
• Solid carbide construction for rigidity and tool life in hard materials
• Bright/uncoated finish maintains sharp cutting edge geometry
• 3/16-inch straight cylindrical shank for standard collet and chuck compatibility
• No pilot required — clean entry on pre-drilled holes

Compatibility

Designed for use on alloy steel, aluminum, brass, cast iron, high-nickel steel, high-tensile steel, magnesium, magnesium alloy, mild steel, Monel, plastic, and stainless steel. Fits any spindle or chuck accepting a 3/16-inch straight cylindrical shank.

Installation Notes

Installation and use should be performed by a qualified machinist following standard machine shop safety practices. Secure the shank fully in the collet or drill chuck before operation and verify runout is within acceptable limits for the application. Power down and lock out the machine before changing or inspecting tooling. Do not exceed the recommended RPM range for the workpiece material and tool diameter.
