M.a. Ford. 43375020 Carbide Ball Abrasive Bur SD-3

Product Description

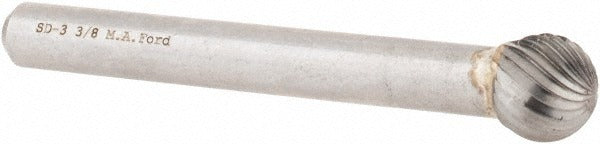

The M.A. FORD. 43375020 is a single-cut carbide abrasive bur with a ball head profile, conforming to industry specification SD-3. It is designed for material removal, deburring, shaping, and surface finishing in metalworking applications. The bur features an uncoated carbide head with a 3/8 inch cutting diameter and a 1/4 inch shank diameter, and is rated for operation up to 30,000 RPM. With an overall length of 2.3125 inches and a length of cut of 0.3125 inches, it is sized for use in die grinders and rotary tool setups. Installation and operation are handled by machinists, tool and die makers, and metal fabricators.

This bur is suited for aggressive material removal and fine finishing work on a wide range of metals, including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and other hard materials. The ball head shape makes it effective for contoured surface work, cavity blending, and internal radius finishing. It is commonly used in production machining, weld prep, mold and die finishing, and repair work where precise material removal in tight or curved geometries is required.

Key Features

• Ball head profile per industry specification SD-3 for curved surface and cavity work
• Single-cut tooth style for efficient chip clearance and smooth finish
• Uncoated carbide head for durability across hard and abrasive materials
• 3/8 inch cutting diameter with 5/16 inch length of cut
• 1/4 inch shank diameter compatible with standard die grinder collets
• Rated up to 30,000 RPM for high-speed rotary tool use

Compatibility

Designed for use in standard die grinders and rotary tools accepting a 1/4 inch shank. Suitable for work on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and other hard materials as specified by the manufacturer.

Installation Notes

This bur is installed and operated by machinists, fabricators, and tooling technicians using die grinders or rotary tools with a compatible 1/4 inch collet. Always ensure the tool is powered off and unplugged before inserting or removing the bur. Secure the shank fully in the collet and verify the rated RPM of the tool does not exceed 30,000 RPM. Wear appropriate eye protection and follow applicable shop safety protocols when operating rotary cutting tools.
