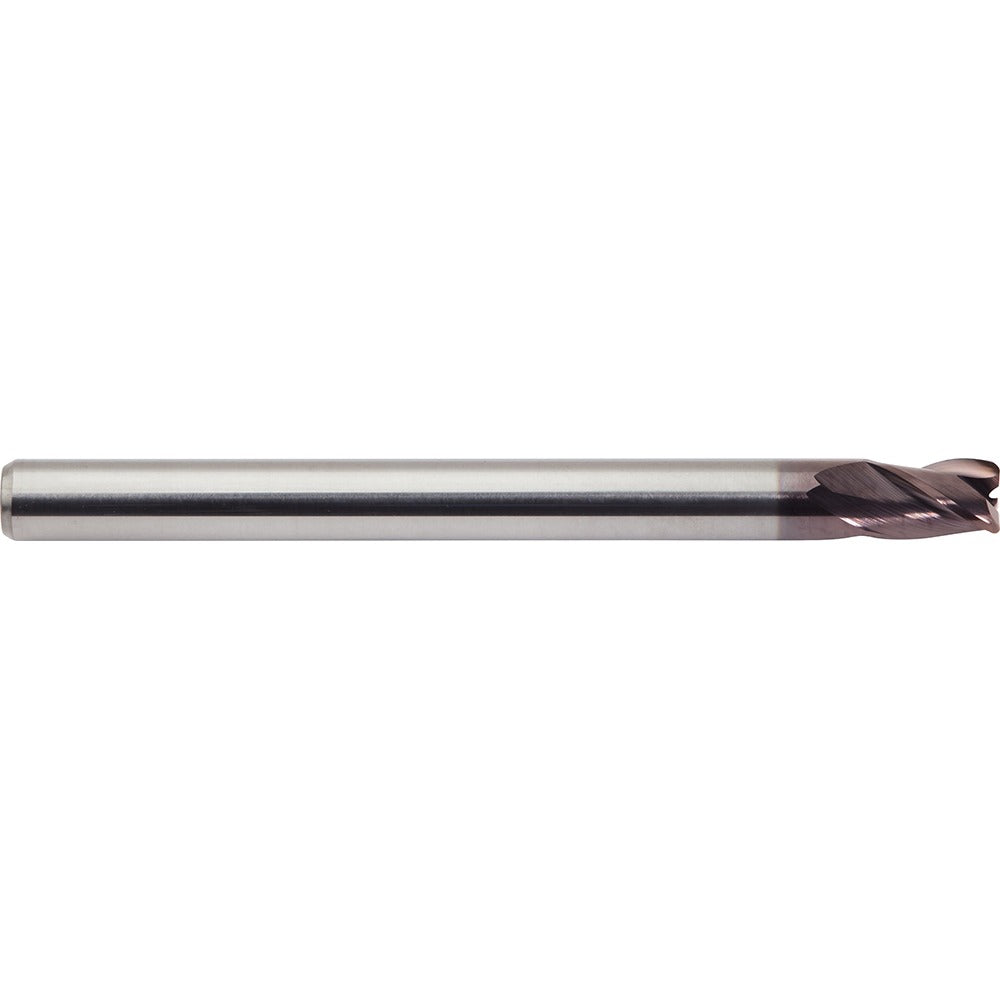

M.a. Ford. 3MVS1250R.010AH Corner Radius End Mill Head

Product Description

The M.A. FORD. 3MVS1250R.010AH is a solid carbide corner radius end mill head designed for high-performance milling in demanding machining environments. With three flutes and a right-hand cutting direction, this end mill head delivers efficient chip evacuation and smooth surface finishes. The variable index and variable helix geometry reduce harmonic vibration during cutting, improving tool life and dimensional accuracy. The corner radius end type protects the cutting edge from chipping under load, making it well-suited for profiling, slotting, and contouring operations in ferrous and non-ferrous materials. Machining professionals and CNC operators rely on this geometry for consistent results across production runs.

This end mill head is intended for use in modular tooling systems that accept compatible replacement heads, making it a practical choice for shops looking to reduce tooling costs without sacrificing cutting performance. It is suited for milling operations on machining centers and CNC mills in both job-shop and production environments. The spiral flute design and right-hand flute direction make it appropriate for climb and conventional milling strategies on a wide range of workpiece materials. The 0.1880-inch length of cut supports shallow-to-moderate depth passes in finishing and semi-finishing applications.

Key Features

• Solid carbide construction for rigidity and wear resistance
• 3-flute configuration promotes efficient chip evacuation
• Variable index and variable helix geometry reduce chatter and vibration
• Corner radius end type protects cutting edges and extends tool life
• Right-hand cut and right-hand flute direction for standard CNC milling setups
• Spiral flute design suitable for profiling, slotting, and contouring

Compatibility

Designed as a modular replacement end mill head for compatible M.A. FORD. tooling systems that accept interchangeable cutting heads. Confirm system interface compatibility with your existing tool holder before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the tool holder is secured in a suitable fixture before threading or torquing the head into the shank body. Follow the tool manufacturer and machine tool builder guidelines for proper engagement and clamping torque. Inspect the mating threads and seating surfaces for debris or damage before assembly.
