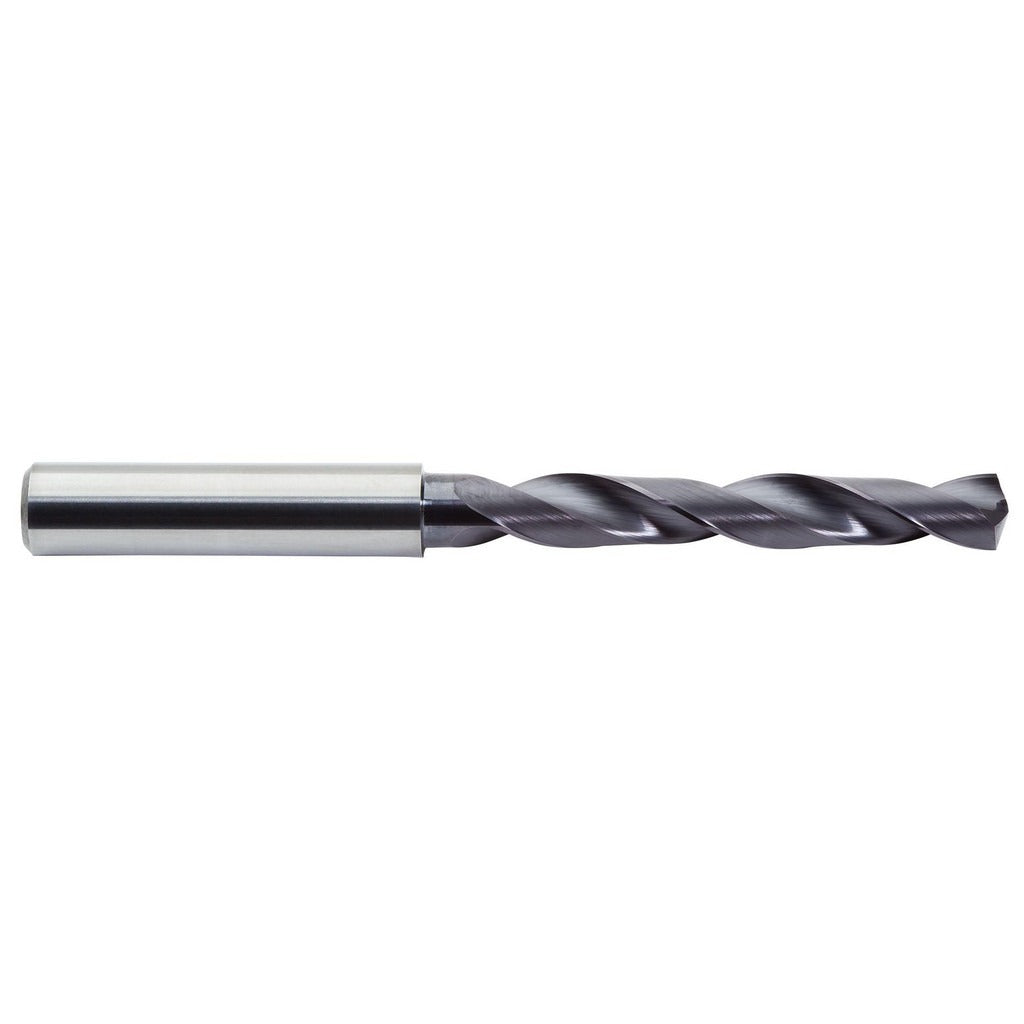

M.a. Ford. 2XDSR1200A Jobber Drill Bit 0.1200 in Solid Carbide

Product Description

The M.A. FORD. 2XDSR1200A is a jobber length drill bit engineered for high-performance drilling in demanding materials. Built from solid carbide with an ALtima TiN coating, it delivers the hardness and thermal resistance required when cutting temperature alloys and titanium. The bit measures 0.1200 inches in diameter with a 142-degree point angle optimized for accurate entry and reduced thrust in tough workpiece materials. Overall length is 2.5 inches with a 1.125-inch spiral flute. Right-hand cutting direction and a straight-cylindrical shank make it compatible with standard toolholders. This bit is suited for machinists and tooling professionals working in precision metal fabrication and aerospace-adjacent applications.

The 2XDSR1200A is designed for use in temperature alloys, titanium, and similar high-strength materials classified under ISO workpiece material groups H, M, and S. The 5xD flute-to-diameter ratio supports chip evacuation in deeper cuts. With a maximum drilling depth of 0.9000 inches and a shank diameter of 0.1250 inches, this bit fits standard collet chucks and drill chucks used in CNC machining centers and manual drill presses. It is sized as a wire gauge number 31 equivalent, making it a common reference size in precision tooling inventories.

Key Features

• Solid carbide construction for high hardness and heat resistance in difficult materials
• ALtima TiN coating reduces friction and extends tool life in titanium and temperature alloys
• 142-degree point angle promotes accurate entry and reduces walking on hard surfaces
• Right-hand spiral flute with regular spiral type for consistent chip evacuation
• Straight-cylindrical shank at 0.1250 inches fits standard collets and drill chucks
• Manufactured under ISO 9001:2015 certified quality standards

Compatibility

Designed for drilling temperature alloys, titanium, and workpiece materials in ISO material groups H, M, and S. Fits standard toolholding systems accepting a 0.1250-inch straight-cylindrical shank. Wire gauge size number 31 equivalent.

Installation Notes

Installation and use should be performed by qualified machinists or tooling technicians familiar with carbide tooling requirements. Ensure the drill chuck or collet is properly torqued and the shank is fully seated before operation. Carbide tooling is brittle - avoid lateral loading, impacts, or interrupted cuts unless the setup is engineered for it. Confirm spindle speed and feed rates are appropriate for solid carbide before engaging the workpiece.
