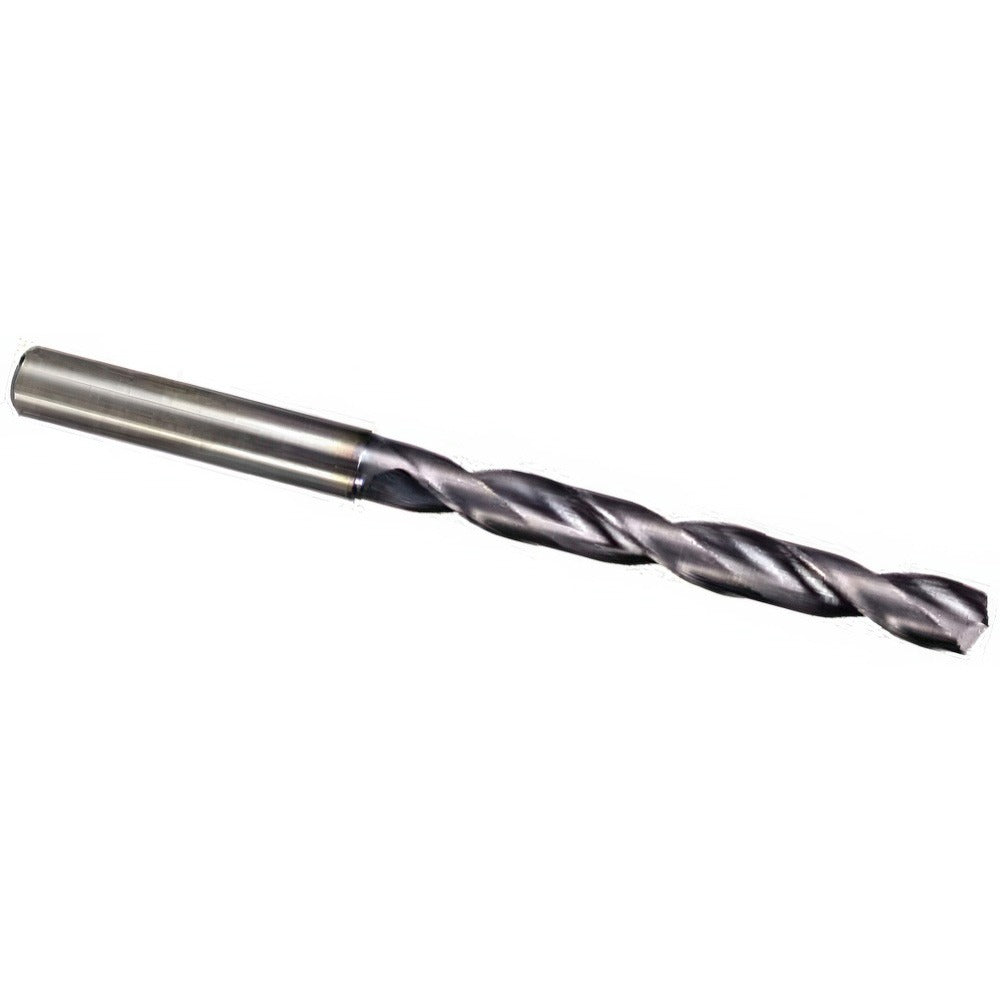

M.a. Ford 2XDCL1181A Taper Length Drill Bit 3 Mm Carbide

Product Description

The M.A. FORD 2XDCL1181A is a solid carbide taper length drill bit engineered for precision drilling in demanding industrial and machining applications. Built on the 2XDCL series platform, it features a 142-degree split point, a right-hand spiral flute, and a straight shank sized at 3 mm. The coated carbide construction provides the hardness and heat resistance required to maintain dimensional accuracy across tough workpiece materials. At 81 mm overall length with a 33 mm flute and a 7xD flute-to-diameter ratio, this bit is suited for deep, controlled hole entry without deflection. Coolant-through capability supports chip evacuation and tool life in high-cycle production environments. Machinists, tool and die makers, and CNC operators are the primary users.

This drill bit is designed for use in CNC machining centers, drill presses, and precision hand-held pneumatic tools where tight hole tolerances are required. Material applications include cast iron, titanium, carbon steel, alloy steel, and tool steel. The 142-degree point geometry reduces thrust force on entry, making it a practical choice for thin-wall workpieces and interrupted cuts. Maximum recommended drilling depth is 26 mm. The straight shank with 48 mm shank length fits standard collet and chuck configurations without modification.

Key Features

• Solid carbide construction for hardness and heat resistance in ferrous and non-ferrous materials
• 142-degree split point reduces entry thrust and improves self-centering accuracy
• Coolant-through design supports chip flushing and extended tool life in high-cycle operations
• 7xD flute-to-diameter ratio enables deeper hole profiles relative to bit diameter
• Right-hand spiral flute with coated finish for reduced friction and improved chip flow
• Diameter tolerance of +0.000 to -0.010 mm supports close-tolerance hole requirements

Compatibility

Rated for use in cast iron, titanium, carbon steel, alloy steel, and tool steel workpieces. Straight shank fits standard 3 mm collets and drill chucks used in CNC machining centers and conventional drill press setups.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle at a full stop and the machine locked out per shop safety procedures. Verify collet or chuck runout before seating the shank to avoid premature edge wear. When using coolant-through capability, confirm that the machine coolant delivery system is compatible with the spindle connection before operation. Do not exceed the recommended maximum drilling depth of 26 mm per the listed specification.
