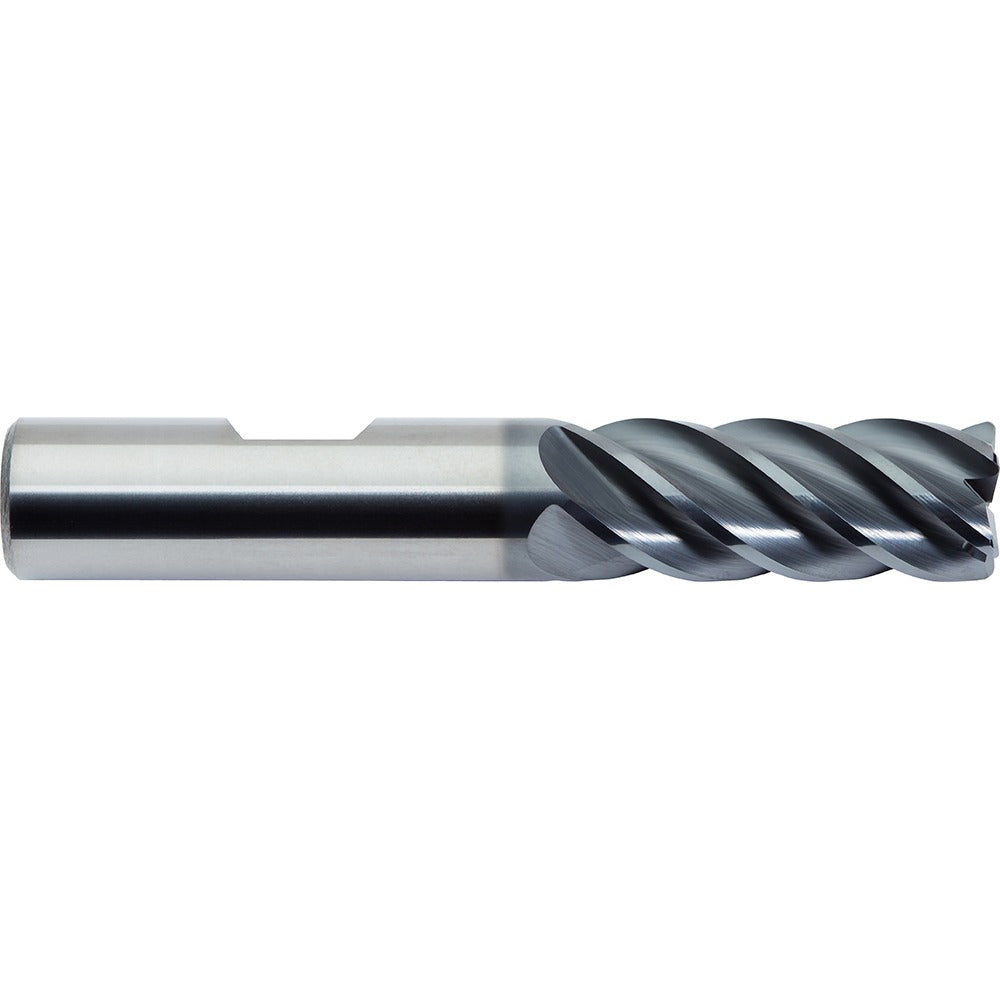

M.a. Ford 27850011B Corner Radius End Mill Head 5 Flute

Product Description

The M.A. FORD 27850011B is a solid carbide corner radius end mill head designed for high-performance milling operations in metalworking and machining applications. With 5 flutes and a right-hand cutting direction, this replaceable head delivers smooth chip evacuation and consistent surface finishes on ferrous and non-ferrous materials. The spiral flute geometry supports efficient cutting action across a 1.0-inch length of cut. At 0.5 pounds, the head is lightweight relative to its cutting envelope, making it practical for modular tooling systems used in production and job-shop environments. Licensed machinists and CNC operators are the primary installers and users of this tooling component.

This end mill head is suited for use in CNC machining centers and manual milling machines where a modular or replaceable head system is employed. The corner radius end type makes it appropriate for profiling, slotting, and peripheral milling operations where a blended corner is required to reduce stress concentrations and improve tool life. The right-hand flute direction and variable index geometry help reduce chatter and harmonics during cutting. This head fits applications in general manufacturing, tool-and-die, aerospace component machining, and precision part production.

Key Features

• Solid carbide construction for hardness and wear resistance in demanding milling operations
• 5-flute spiral design supports high feed rates and improved surface finish
• Corner radius end type reduces stress at the cutting edge and extends tool life
• Right-hand cutting direction compatible with standard CNC spindle rotation
• Variable index flute spacing helps minimize vibration and chatter
• 1.0-inch length of cut suitable for moderate-depth profiling and slotting

Compatibility

Designed as a replacement-style corner radius end mill head for modular milling tooling systems that accept compatible interchangeable head configurations. Verify head interface specifications against your toolholder system before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator familiar with modular tooling systems. Ensure the machine spindle is fully stopped and the tool is secured in accordance with the toolholder manufacturer torque and interface specifications. Inspect the mating surfaces of both the head and toolholder for chips or damage before assembly. Follow all applicable shop safety protocols and machine guarding requirements during tool changes.
