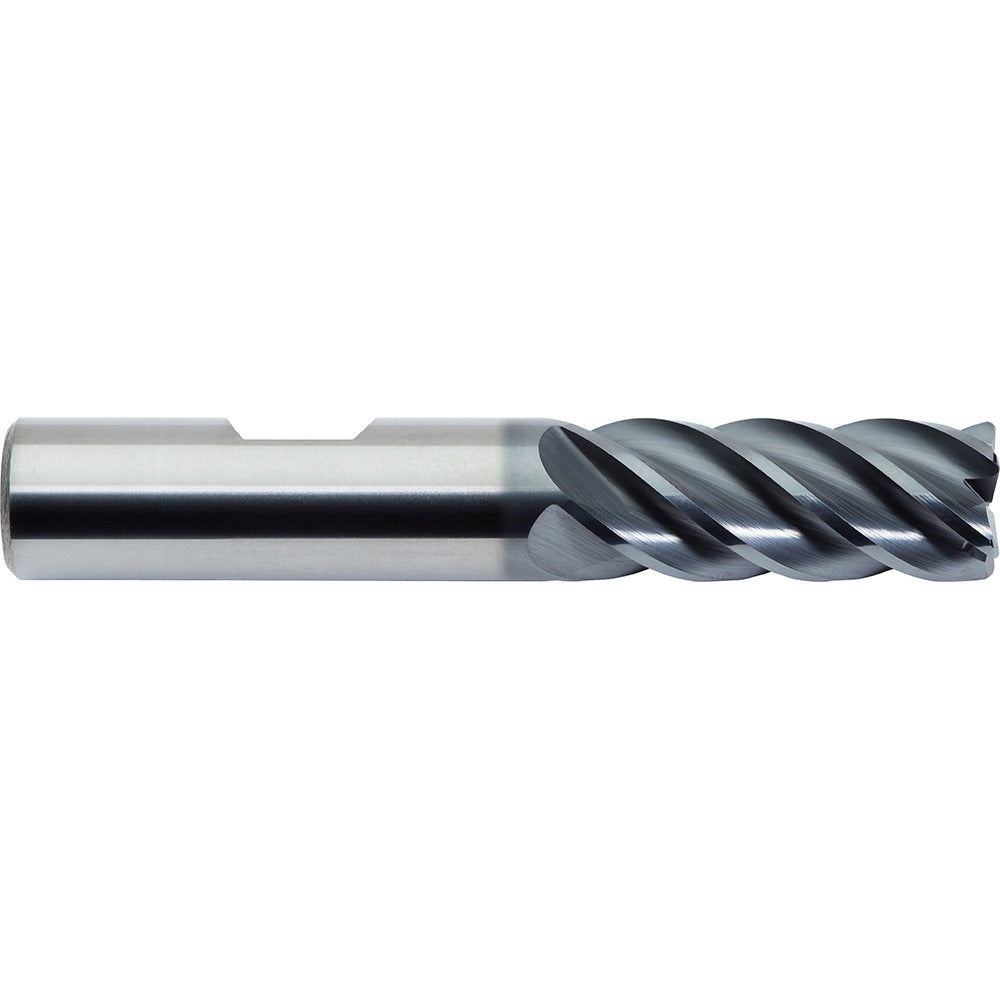

M.a. Ford 27850008B Corner Radius End Mill Head 5 Flute

Product Description

The M.A. FORD 27850008B is a solid carbide corner radius end mill head designed for high-performance milling applications in demanding machining environments. Built with 5 flutes and a spiral flute geometry, this replacement-style head delivers smooth chip evacuation and consistent surface finishes on ferrous and non-ferrous materials. The right-hand cutting direction and right-hand flute spiral are standard for conventional CNC milling setups. A variable index configuration helps reduce harmonic vibration during cutting, making it suitable for aggressive material removal at higher feed rates. Machinists and CNC operators working in production or tool-and-die environments will recognize this head as a direct replacement insert for compatible modular end mill systems.

This corner radius end mill head is intended for use in modular tooling systems where the cutting head threads or locks onto a separate arbor or shank body. The corner radius end type protects the cutting edge from chipping on entry and exit moves, making it well-suited for profiling, slotting, and semi-finish passes in steel, stainless, aluminum, and similar materials. It is packaged individually and sold as a single unit, making it practical for toolroom restocking or replacing a worn head without purchasing a full assembly.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• 5-flute design increases feed rate potential and improves surface finish
• Corner radius end type reduces edge chipping on lateral entry moves
• Variable index flute spacing reduces chatter and harmonic vibration
• Right-hand cut and right-hand spiral - compatible with standard CNC spindle direction
• Spiral flute geometry promotes efficient chip evacuation

Compatibility

Designed as a replacement cutting head for M.A. FORD modular end mill systems that accept this head style and size. Confirm shank compatibility and thread engagement specifications with your existing toolholder before installation.

Installation Notes

Installation of modular end mill heads should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle is fully powered down and locked out before changing any cutting head. Use the correct torque wrench and head-engagement tool specified by the toolholder manufacturer - do not use pliers or improvised tools that could damage the mating threads. Inspect the mating surfaces of the shank and head for chips or contamination before threading the head into place.
