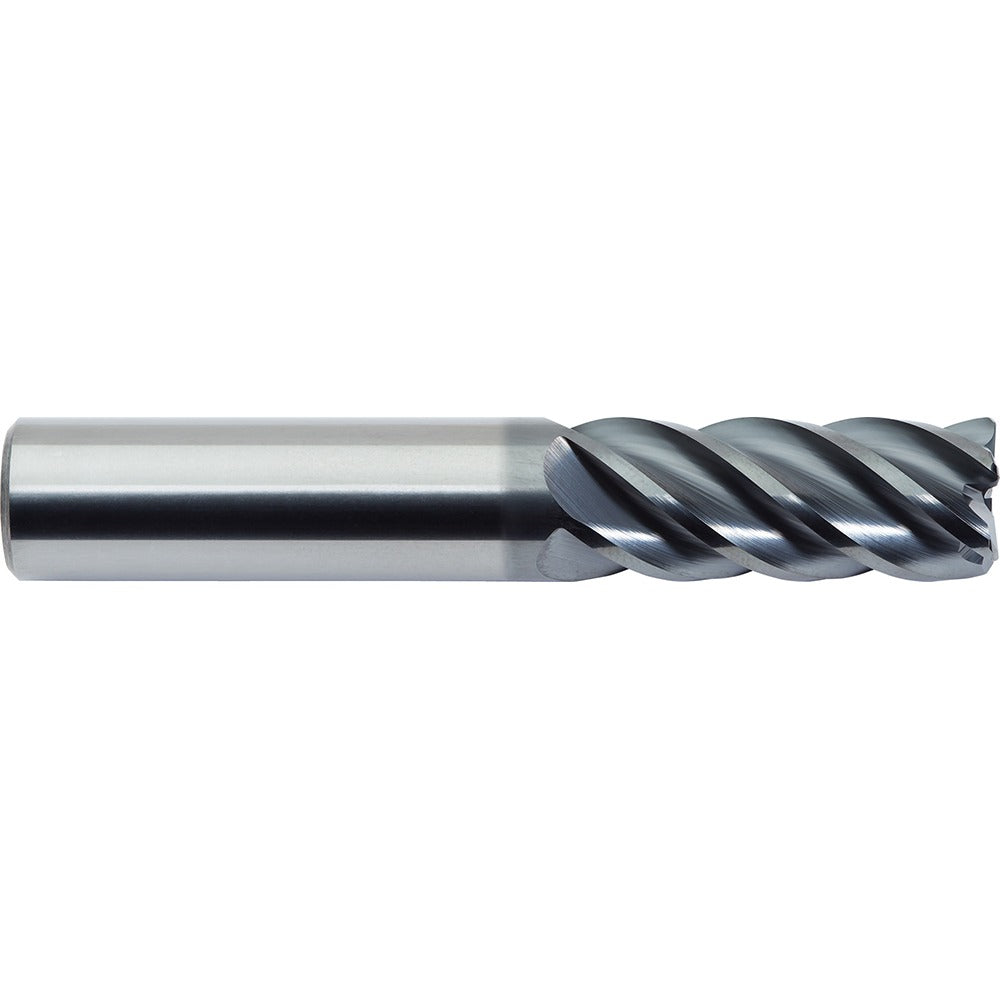

M.a. Ford 27837511B Corner Radius End Mill Head 5 Flute

Product Description

The M.A. FORD 27837511B is a solid carbide corner radius end mill head designed for precision milling operations in demanding metalworking and machining applications. Built with 5 helical flutes and a right-hand cutting direction, this single-end tool delivers efficient chip evacuation and smooth cutting performance. The 3/8 inch straight shank provides secure tool holding in compatible milling systems. A variable index geometry helps reduce harmonic vibration during high-speed passes, making it well suited for finishing and semi-finishing cuts where surface quality matters.

This end mill head is intended for use in CNC machining centers and manual milling machines where a corner radius profile is required to blend floor-to-wall transitions, reduce stress concentrations in pockets, or meet tight contour tolerances. It is appropriate for ferrous and non-ferrous material removal in job shop, tool-and-die, and production machining environments. Licensed machinists and CNC operators are the primary installers and users of this tooling.

Key Features

• Solid carbide construction for rigidity and wear resistance in high-speed milling
• 5 helical flutes for improved chip flow and reduced cutting forces
• Corner radius end type to minimize stress risers and improve contour surface finish
• Variable index flute spacing to dampen vibration and chatter
• Right-hand flute direction and right-hand cutting for standard milling spindle compatibility
• Single-end design with 3/8 inch straight shank for straightforward tool holder fitment

Compatibility

Designed as an OEM-style replacement corner radius end mill head compatible with standard straight-shank tool holders accepting a 3/8 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the tool holder is clean and free of chips or debris before seating the shank. Follow machine tool manufacturer torque specifications for set screws or collet nuts when securing the tool holder. Inspect the cutting edges for chipping or wear before each use and replace the tool if damage is observed.
